34788-H

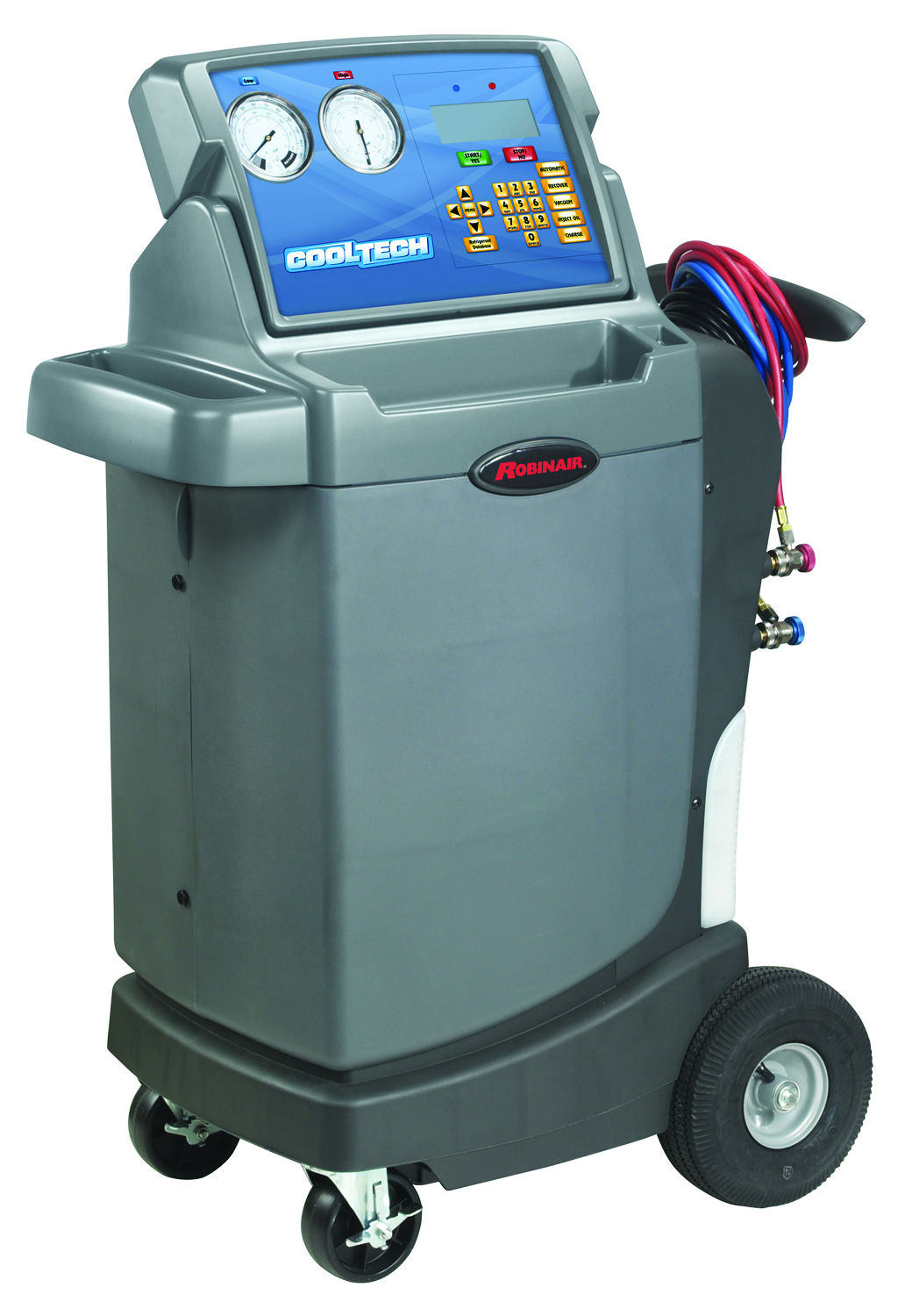

A/C Recover, Recycle, Recharge Machine - Hybrid and Non-Hybrid V

• One machine to safely service both conventional and high voltage A/C systems.
• Menu selectable function that gives the user the ability to clear any residual oil from the A/C Recover, Recycle and Recharge machine's fluid circuit and hoses minimizing risk of oil cross contamination.
• Meets new SAE refrigerant recovery standards J-2788 for high voltage compressors.
• A/C capacities database (optional)
• Automatic air purge.
• Recovery accuracy +/- 1.0 oz.
• Charge accuracy +/- 1/2 oz. Higher accuracy for today's low volume A/C systems



Where to Buy

Videos:

Images:



Documents:

Product Brochure (Document # 11-149)

User Manual - English

User Manual - Spanish

User Manual - French

SDS (Document # 552184)

Tech Specs:

Dimensions:

35.50in x 23.70in x 50.70in

Product Specs:

Voltage: 115 volt, 60 Hz

Refrigerant container onboard: 30 lb. (14 kg) vessel (source tank not included)

Operating range: 50 - 120° F (11- 49° C)

Pump-free air displacement: 1.5 cfm. (36 L/minute)

Category:

Automotive

A/C Recovery and Recycling

Refrigerant Recovery and Recharging

Related Parts & Accessories:

34411-E - A/C Capacities Database 2014
