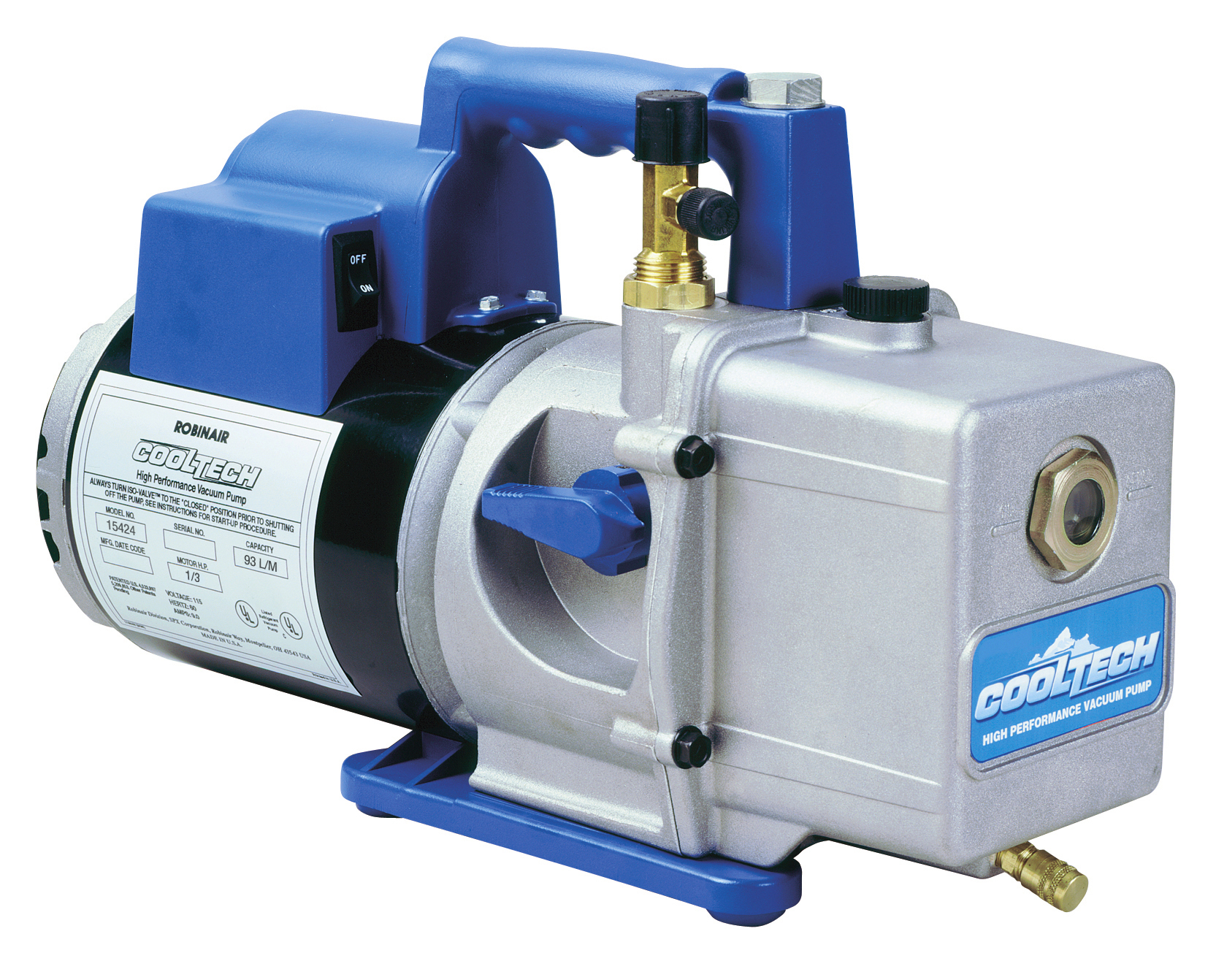

CoolTech Vacuum Pump 115V/220V-250V

Power and capacity for a wide range of service applications. High CFM rating for fast, thorough evacuation.

• Free Air Displacement: 93 liters/minute

• Factory Micron Rating: 20 microns

• No. of Stages: 2

• Intake Fitting: 1/4" MFL and 1/2" Acme

• Oil Capacity: 15 oz. (445 ml)

• Motor Size: 1/3 hp

• Voltage: 115V/220V-250V 50/60 Hz

• Approvals: CE

• Weight: 29 lbs. (14.5 kg)

• Dimensions: 9.5" H x 5.5" W x 15" L (247mm x 142mm x 381mm)

• Two-stage rotary vane design
