R-ID Plus Refrigerant Analyzer

You are here

16995

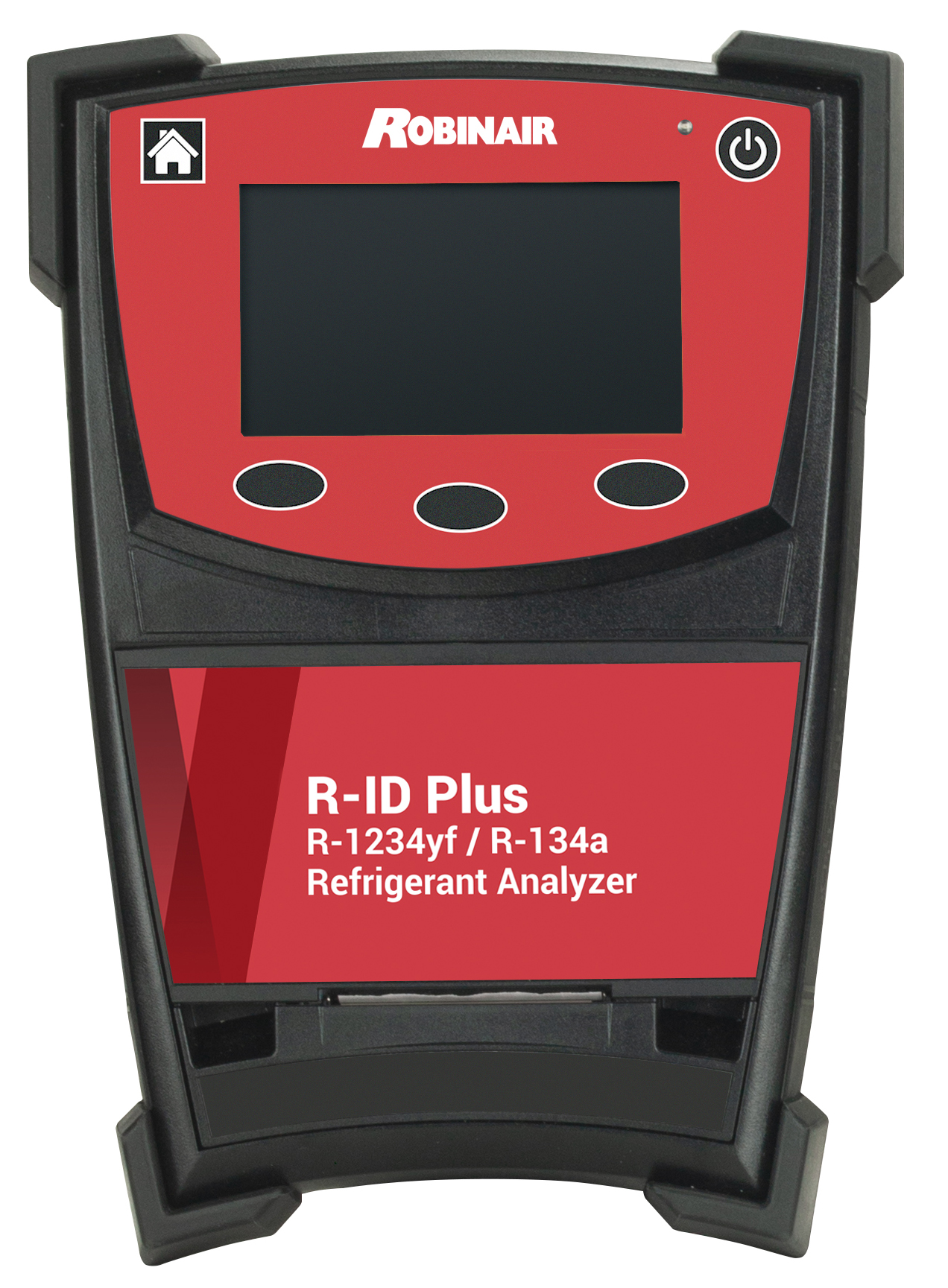

R-ID Plus Refrigerant Analyzer

The Robinair R-ID Plus Refrigerant Analyzer is a tool to meet the service needs of technicians working on vehicles equipped with either R134A or the newer R-1234yf refrigerant. It quickly analyzes refrigerant in a vehicle's A/C system to determine if it is good or bad, a requirement of R-1234yf service. It is certified to the SAE J2912 standard and is capable of connecting directly to any SAE J2843 or J3030 AC service machine that has an external USB port and is not equipped with a refrigerant analyzer. A large, easy to read color display shows results quickly and accurately, helping technicians decide their next step. The Robinair R-ID Plus comes with an internal printer to print final test results.

Find a Distributor

This product can expose you to chemicals including Lead Acetate, which is known to the State of California to cause cancer, and Lead Acetate, which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.

Tech Specs:

Dimensions:
10.50in x 7.50in x 2.88in
Weight:
2.88 lb
Product Specs:
Refrigerants Measured | R1234yf, R134a, and R12
Contaminants Measured | R22, Hydrocarbons, Unknown
Accuracy | Exceeds SAE J2912 requirements
Refrigerant %'s Displayed | R1234yf, R134a, R22, R12, Hydrocarbons, Air and Unknown
Operating Temperature | 0 C to 49 C
Power | 12VDC @ 1.5 amps
Battery | Lithium battery
Display | 5.0 inch color LCD display with soft keys
Communication Protocols | USB 2.0, Bluetooth 2.0
Languages | ENG, FRE, GER, ITA, POR, SPA, CHI, JAP, KOR, RUS
Certifications | CE, UL and SAE
Includes:
R-ID Plus Refrigerant Analyzer
R-1234yf and R-134a low side service couplers
R-1234yf and R-134a cylinder adapters
(2) R-1234yf sample hoses
(2) R-134a sample hoses
Battery charging adapter
Custom fit storage case
Features:
Quickly and accurately determine refrigerant purity
Displays amount of R-1234yf, R-134a, R-12, R-22 and Hydrocarbons in percentage
Displays % air in pure R-1234yf & R-134a
Capable of testing R-12 with optional R-12 hose
Improved oil resistance with the user replaceable oil restrictor
Large color display
Easily print test results with built in printer
Battery powered with internal lithium battery
Ergonomic design with protective boot
Category:
Automotive
Electronic Test Instruments
