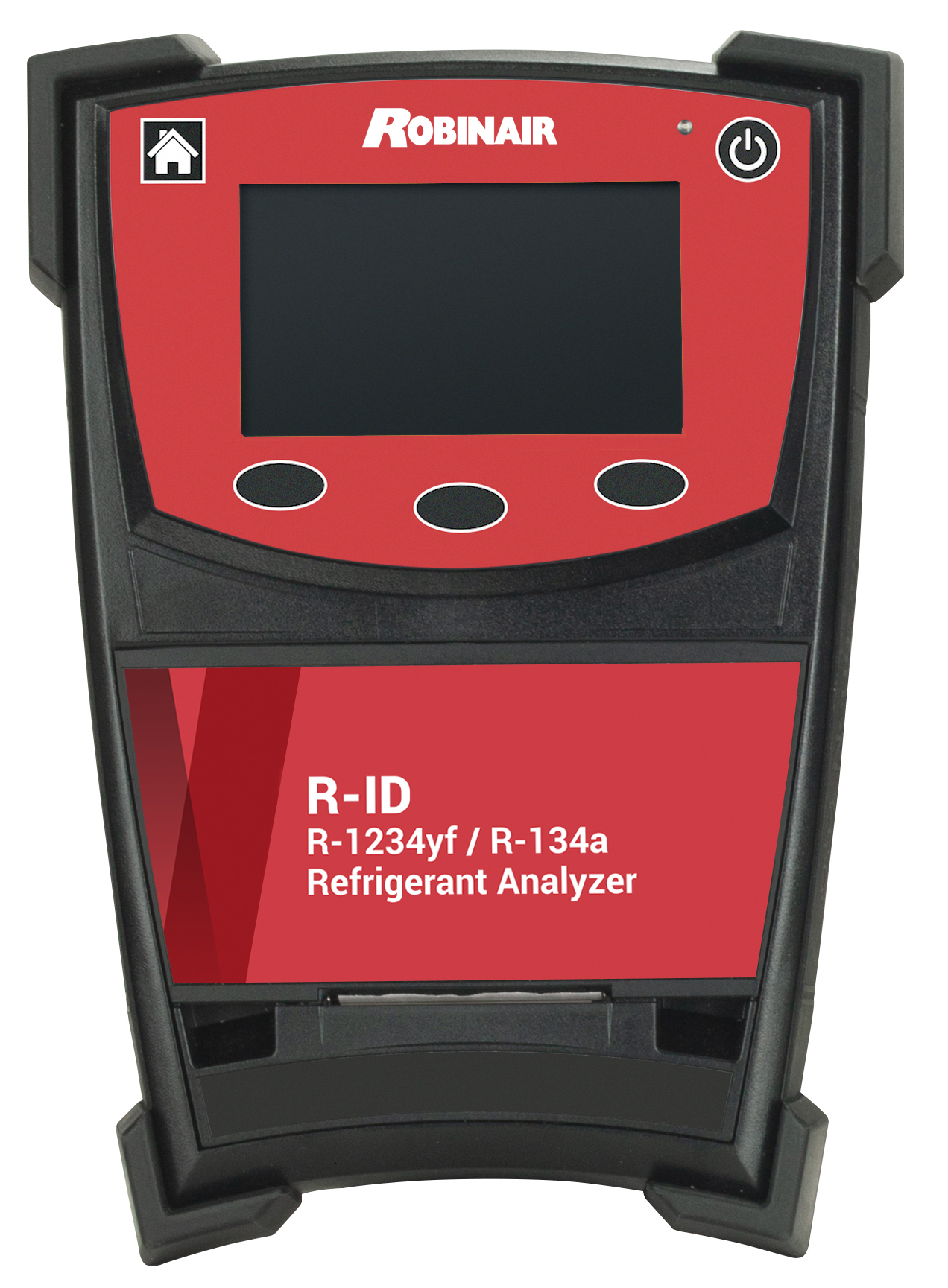

R-ID Refrigerant Analyzer

The Robinair R-ID Refrigerant Analyzer is a tool to meet the service needs of technicians working on vehicles equipped with either R134A or the newer R-1234yf refrigerant. It quickly analyzes refrigerant in a vehicle's A/C system to determine if it is good or bad, a requirement of R-1234yf service. It is certified to the SAE...

Read More

  • Specifications
  • Features
  • Downloads
  • Refrigerants Measured | R1234yf, R134a and R12
    Contaminants Measured | R22, Hydrocarbons, Unknown
    Accuracy | Exceeds SAE J2912 requirements
    Refrigerant %'s Displayed | R1234yf, R134a, R22, R12, Hydrocarbons, Air and Unknown
    Operating Temperature | 0 C to 49 C
    Power | 12 VDC @ 1.5 amps
    Battery | Lithium battery
    Communication Protocols | USB 2.0
    Display | 5.0 inch color LCD with soft keys
    Languages Supported | ENG, FRE, GER, ITA, POR, SPA, CHI, JAP, KOR, RUS
    Certifications | CE, UL and SAE
  • Quickly and accurately determine refrigerant purity
    Displays amount of R-1234yf, R-134a, R-12, R-22 and Hydrocarbons in percentage
    Displays % air in pure R-1234yf & R-134a
    Capable of testing R-12 with optional R-12 hose
    Improved oil resistance with user replaceable oil restrictor
    Large color display
    Battery powered with internal lithium battery
    Ergonomic design with protective boot
  • Documents:

    High Resolution Images:
This product can expose you to chemicals including Lead acetate, which is known to the State of California to cause cancer, and Lead acetate, which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.
