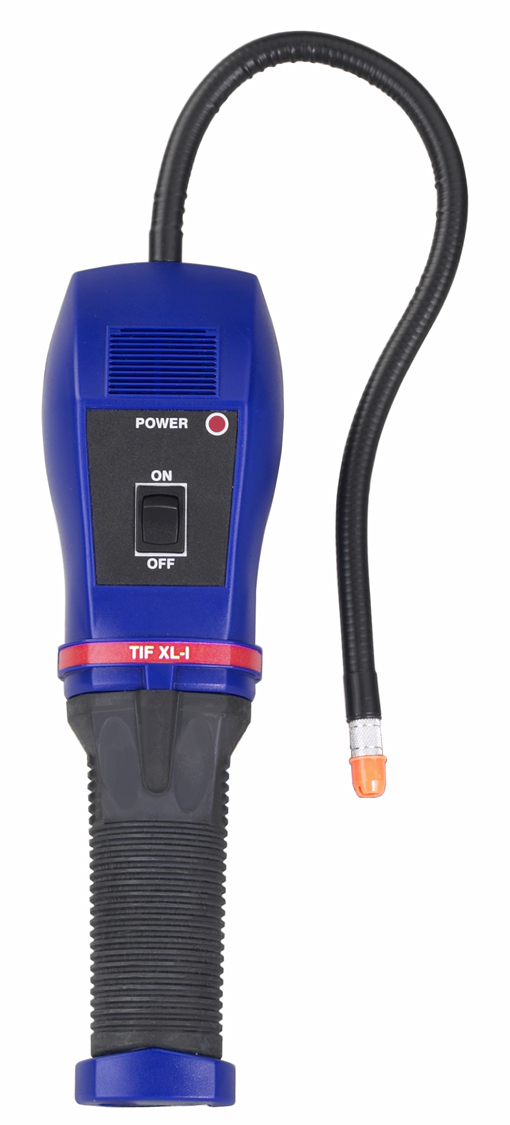

TIFXL-1A

Refrigerant Leak Detector

The revolutionary new “Generation X” line of TIF refrigerant leak detectors brings you tomorrow’s technology today. We not only changed the way our leak detectors look, but the way to look at leak detectors. Innovative MPC circuitry and Advanced Digital Signal Processing monitor the sensing tip up to 2000 times per second. Automatic reset, true mechanical pump, and visual indicators (TIF XP-1 and TIF RX-1) speed and simplify leak searches.

A completely re-designed sensing tip increases sensitivity, improves reliability, and lasts twice as long as its predecessor. This results in fewer comebacks, less hassle, and lower maintenance costs. We are so confident in the design and quality of these detectors that they are backed by a warranty of up to 3 years.

All Models Feature:



  • Microprocessor controlled circuit with Advanced Digital Signal Processing
  • Detects ALL halogenated refrigerants
  • Certified to SAE J1627
  • Variable frequency audible alarm
  • CE approval
  • UL classified
  • Constant power indication
  • Cordless and portable; operates on two C-cell batteries
  • 14" (35.5 cm) flexible stainless steel probe with liner
  • Carrying case included, optional holster
  • Optional reference leak source





Additional TIFXL-1A Features:

  • Single switch control
  • Two-year warranty



Additional TIFRX-1A Features:



  • Six-segment visual leak size indicator
  • True mechanical pump provides positive airflow through sensing tip
  • High and low sensitivity levels
  • One touch reset
  • Tactile keypad controls
  • Two-year warranty





Additional TIFXP-1A Features:

  • Tri-color, six-segment visual leak size indicator displays 18 alarm levels
  • Seven levels of sensitivity adjustment provide an increase of up to 64x
  • Battery test function with true voltage indication
  • Mute feature silences audible alarm
  • True mechanical pump provides positive airflow through sensing tip
  • One touch reset
  • Tactile keypad controls
  • Three-year warranty
Power Source
3V DC; 2 “C” cell alkaline batteries
Ultimate Sensitivity
TIFXL-1A - Less than 0.4 oz./yr. (11g/yr.)
Sensing Tip Life
Approx. 20 hours
Operating Range
30° to 125° F (0° to 52° C)
Battery Life
TIFXL-1A – Approx. 40 hrs.
Duty Cycle
Continuous
Response Time
Instantaneous
Reset Time
One second
Warm-up Time
Approx. 2 seconds
Unit Weight
1.2 lbs. (560 grams)
Unit Dimensions
9" x 2.25" x 2.25" (22.9 cm x 5.7 cm x 5.7 cm)
Fixed Probe Length
14" (35.5 cm)
UPC
687744601436
Warranty
Two Year
