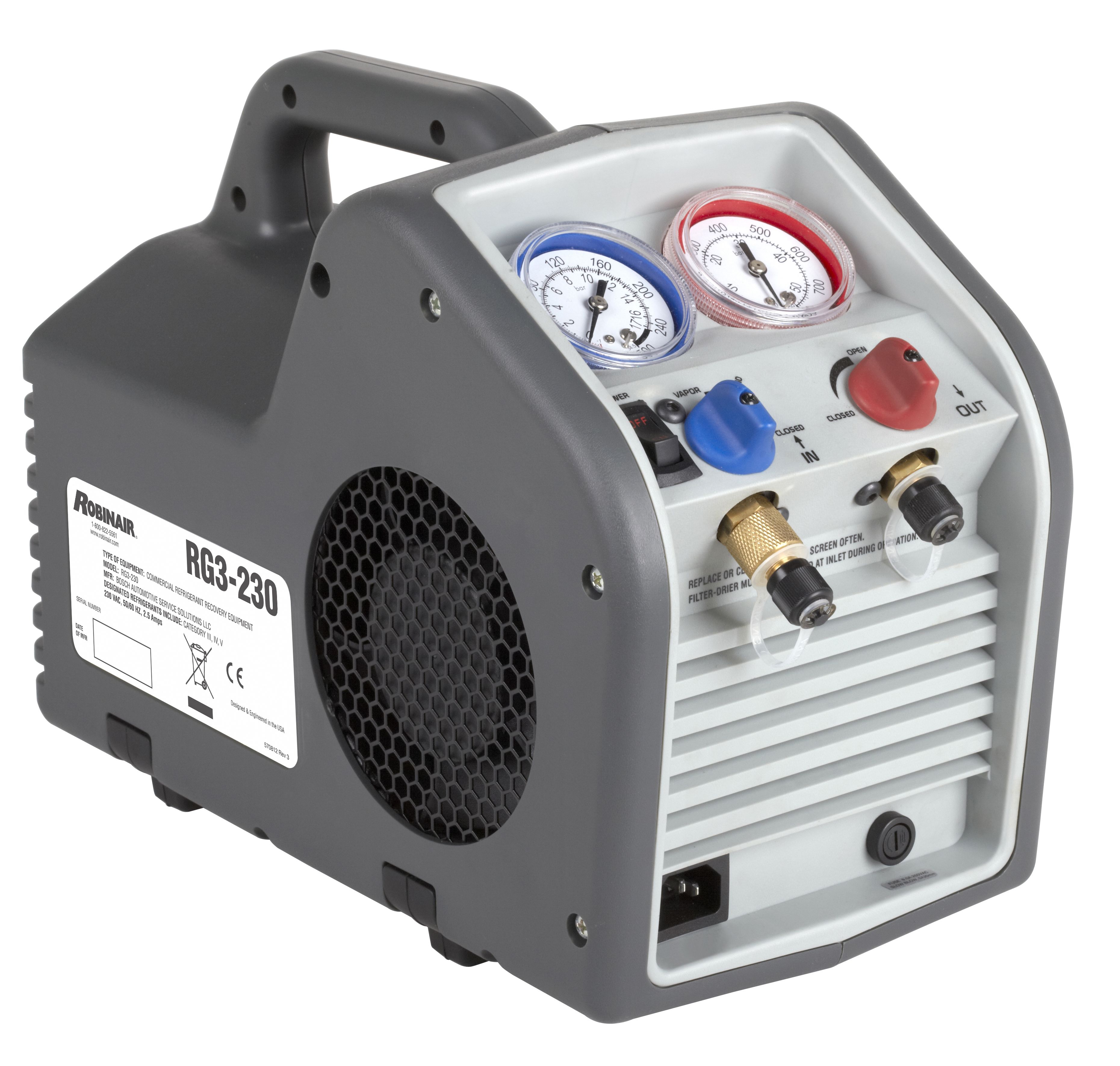

RG3 Portable Refrigerant Recovery Machine - 230V

You are here

RG3-230

RG3 Portable Refrigerant Recovery Machine - 230V

The RG3 sets the new standard in refrigerant recovery. All jobs are different. From a rooftop to a marine HVAC system, the RG3 is easy to use and ideal for any residential and appliance sized recovery job. Capable of recovering both liquid and vapor refrigerant, the RG3 is engineered to withstand the...

Read More

  • Specifications
  • Features
  • Downloads
  • Capabilities: Push-Pull, Liquid, Vapor
    Compressor: 1/3 hp, single cylinder, oil-less
    Power: 230V AC, 50/60 Hz
    Weight: 18 lbs
    Dimensions: 12.5” L x 6.5” W x 9.5” H
    Approvals: UL (ARI-740), CE
    Warranty: 1 year -over the counter exchange
  • Compact and Lightweight - 40% smaller footprint, easy to carry, weighing in at 18 lbs!
    Oil-less Compressor - Capable of recovering both liquid and vapor
    Handles Almost All Refrigerants - Works with all common CFC, HFC, HCFC Refrigerants including R-410A
    High Efficiency Cross Flow Design - Layout of fan and condenser is maximized for shorter cycle times
    High Pressure Safety Shut-off Switch - Automatically shuts off machine if pressure rises above 550 psi
    Easy to Operate, Rugged Case - Easy to read gauges, comfortable handle and simple 2 valve controls
    IEC Connector and power cord
