RG6-230

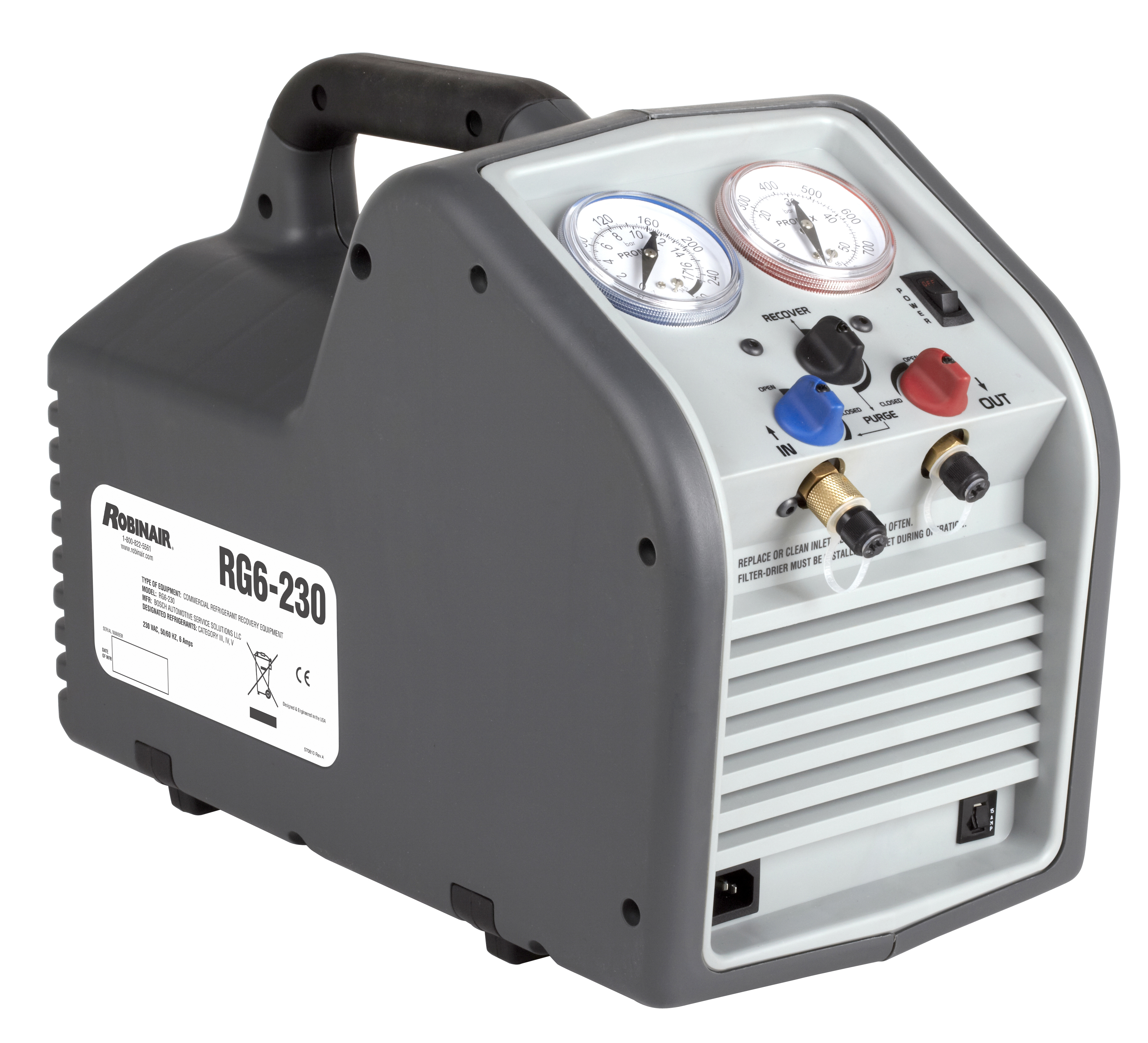

RG6 Portable Refrigerant Recovery Machine - 230V

Performance and Speed for Today’s Busy Technicians

The RG6 is engineered to include what technicians need in a recovery machine – a rugged and tough machine with fast recovery rates. The RG6 is built for speed providing the best refrigerant...

Where to Buy

Specifications
Features
Downloads

Capabilities: Push-Pull, Liquid, Vapor

Compressor: 3/4 hp, direct drive

Power: 230V AC, 50/60 Hz

Weight: 27 lbs

Dimensions: 17" L x 9" W x 12" H

Approvals: UL (ARI-740) / CE pending

Warranty: 1 year -over the counter exchange
Twin-Cylinder Design - Provides best-in-class* recovery performance

Oil-less Compressor - Capable of handling both liquid and vapor recovery

Oversized Condensers and Fan - Larger condenser area and larger fan allow for maximum cooling and shorter cycle times

High Pressure Safety Shut-off Switch - Automatically shuts off machine if pressure rises above 550 psi

Self-Purge Feature - Eliminates potential for cross-contamination and saves time

Easy to Operate, Rugged Case - Oversized pressure gauges, comfortable handle and simple controls

Handles Almost All Refrigerants - Works with all common CFC, HFC, HCFC Refrigerants including R-410A

IEC connector and power cord
