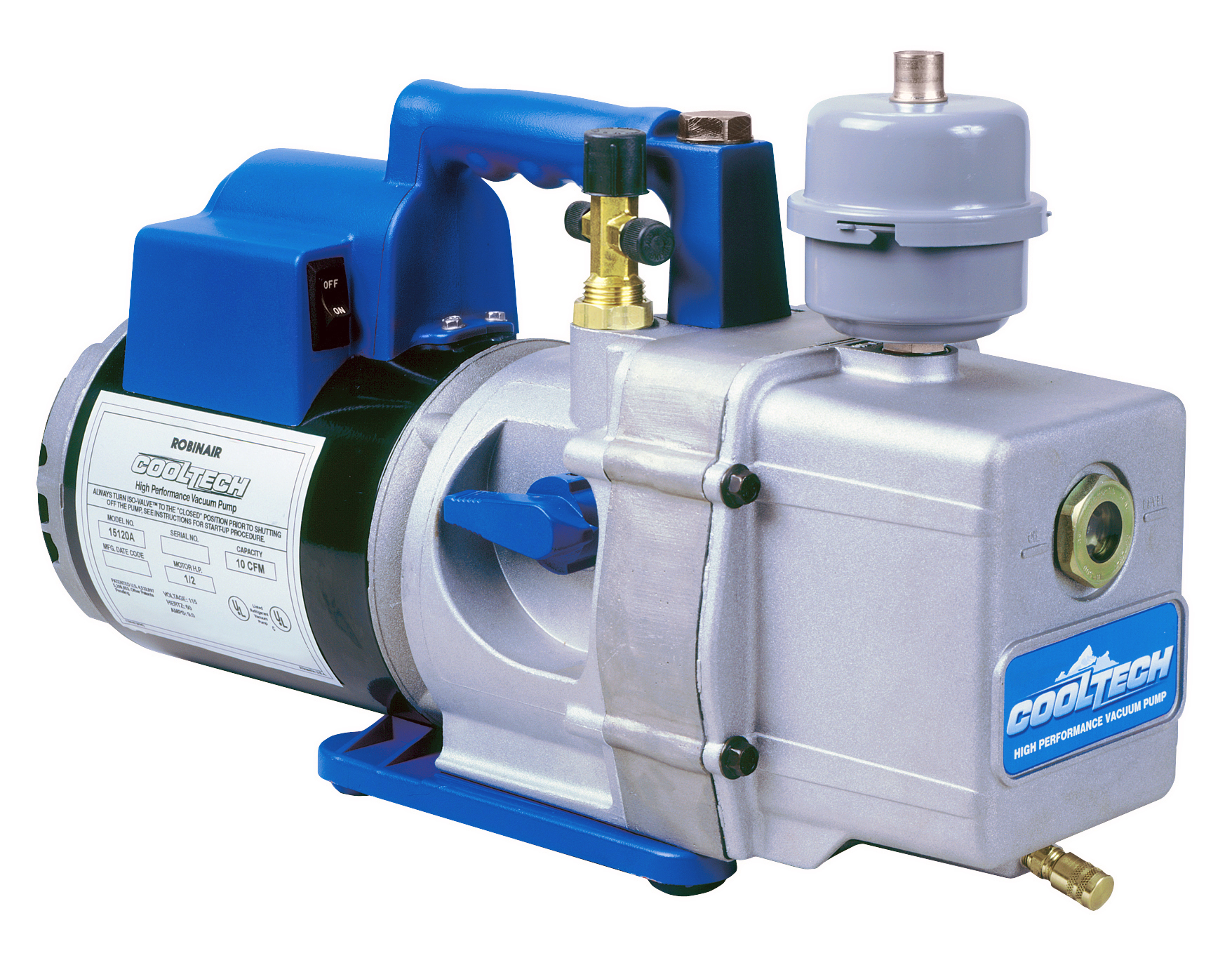

Robinair 15120A 10 CFM vacuum pump photo
15120A

10 CFM Vacuum Pump

Robinair vacuum pump features below. See Specifications tab for voltage, micron rating, recommended uses, dimensions and more.

  • Iso-Valve™: Isolates the pump from the system with just a quarter-turn
  • Gas ballast: Allows moist air to pass through the pump to mix with dry air, reducing condensation
  • Heavy-duty motor: Sealed bearing, high-torque design for easy startup and efficient operation
  • 2-stage rotary vane design: Powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time
  • Offset rotary vanes: Unique design builds more compression, reducing system pressure and removing more moisture
  • Molded polycarbonate base: Reduces vibration and provides balance during operation
  • Angled oil drain valve: faster, more complete draining
  • Top oil fill port: Better access when refilling oil
  • Cast aluminum body: Lightweight and durable die-cast aluminum reduces weight and creates a strong, durable pump
  • Quality: Performance-tested to meet Robinair’s quality, durability and longevity standards
  •  Intake screen: Prevents foreign matter from entering pumping chamber. External exhaust filter separates oil vapor from exhaust flow
  • Brass intakes: Reliable brass intake valves with Flare, ACME or both style fittings with tethered caps
  • “No Hassle” warranty: Exclusive over-the-counter replacement warranty. Robinair pumps can be returned to a distributor for an immediate exchange. U.S. and Canada only. In other locations, see your Robinair distributor
  • Multi-use: Designed for use on A/C-R systems using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkyl benzene oil, and PAG oil as lubricants
  • Not for use with ammonia or lithium bromide systems
  • Not for use with A4L or other flammable refrigerants
Compare Models
Free air displacement
10 CFM
Factory micron rating
15 microns
Stages
2
Intake fitting
1/4" MFL, 3/8" MFL, & 1/2" MFL
Oil capacity
16.5 oz (488 ml)
Motor size
1/2 hp
Voltage
115V 60 Hz
Approvals
UL
Weight
38 lbs (17.24 kg)
Dimensions
10.75" H x 5.625" W x 16.5" L (273 mm x 143 mm x 419 mm)
Uses
Up to 70 tons (246 kW)
Cord length
6' (1.8 m)
UPC
637335000810
Warranty
One Year

Compare to similar items

Robinair 15120A 10 CFM vacuum pump photo

15120A


15115

15150 VacuMaster 1.5 CFM pump photo

15150

Free air displacement 10 CFM 1.5 CFM 1.5 CFM
Factory micron rating 15 microns 115 microns 50 microns
Stages 2 1 2
Intake fitting 1/4” MFL, 3/8” MFL, & 1/2” MFL 1/4” flare and 1/2” Acme 1/4” MFL and 3/8” Acme 3/8” FFL x 1/2” Acme adapter
Oil capacity 16.5 oz (488 ml) 10 oz. (300 ml) 7.4 oz. (219 ml)
Motor size 1/2 hp 1/4 hp 1/3 hp
Voltage 115V 60 Hz 110V 60Hz 115V 60 Hz
Approvals UL CSA CSA
Uses Up to 70 tons (246kW) Up to 10 tons (35kW) domestic refrigeration, passenger cars Up to 10 tons (35kW) domestic refrigeration, passenger cars
Cord length 6’ (1.8 m) 6’ (1.8 m) 6’ (1.8 m)
