4 CFM Vacuum Pump

You are here

15434

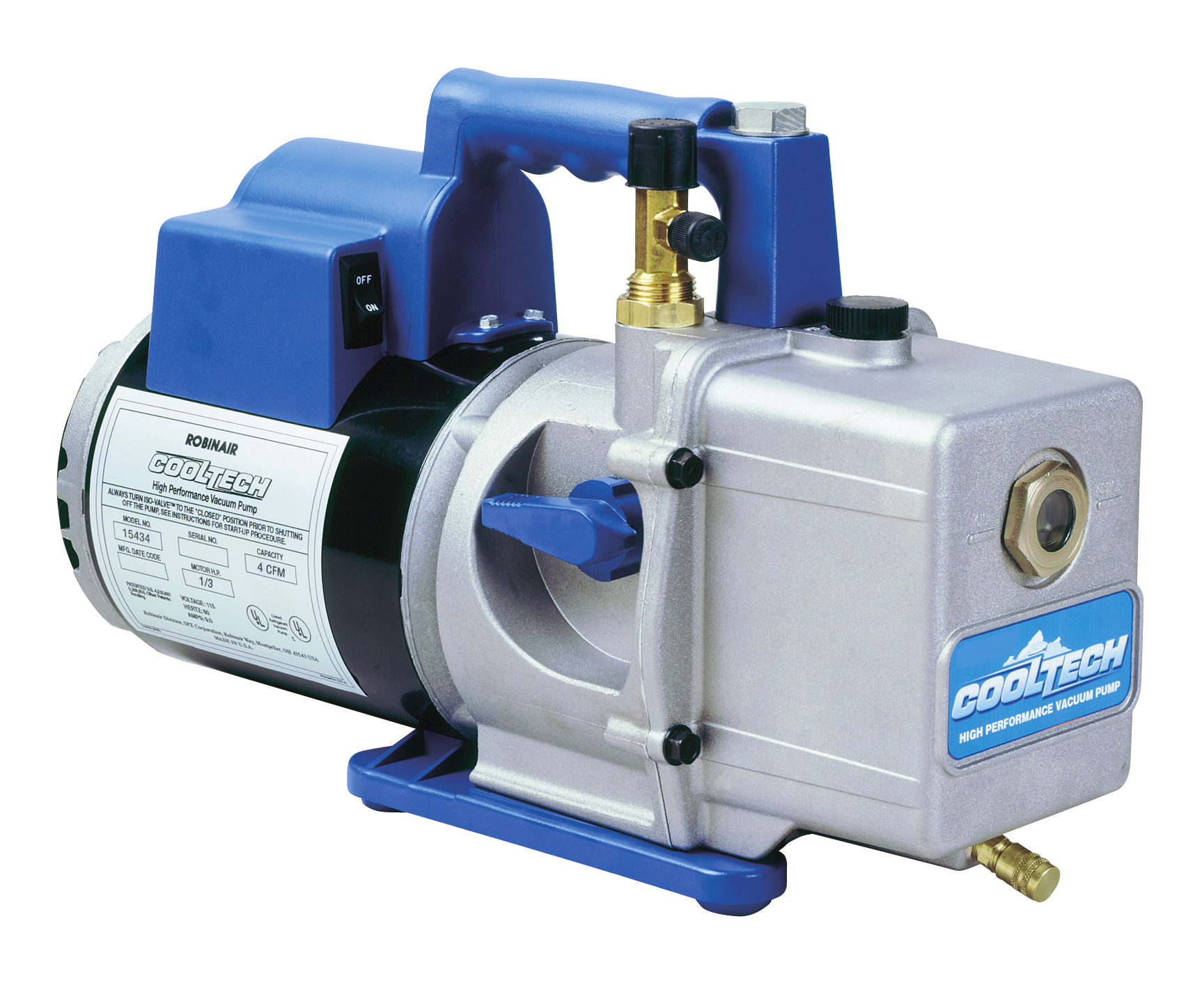

4 CFM Vacuum Pump

Robinair vacuum pump features below. See Specifications tab for voltage, micron rating, recommended uses, dimensions and more.

...

Read More

  • Specifications
  • Videos
  • Downloads
  • Free air displacement: 4 CFM
    Factory micron rating: 15 microns
    Stages: 2
    Intake fitting: 1/4" MFL & 1/2" ACME
    Oil capacity: 13 oz (384 ml)
    Motor size: 1/3 hp
    Voltage: 115V 60 Hz
    Approvals: UL
    Weight: 29 lbs (13 kb)
    Dimensions: 9.75" H x 5.625" W x 15" L (247 mm x 143 mm x 381 mm)
    Uses: Up to 30 tons (105 kW) Residential A/C, panel trucks & RVs
    Cord length: 6' (1.8 m)
  • Videos:

  • Documents:

    High Resolution Images:
This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer, and LEAD, which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.

Replacement parts and accessories for 4 CFM Vacuum Pump

Replacement Parts :
