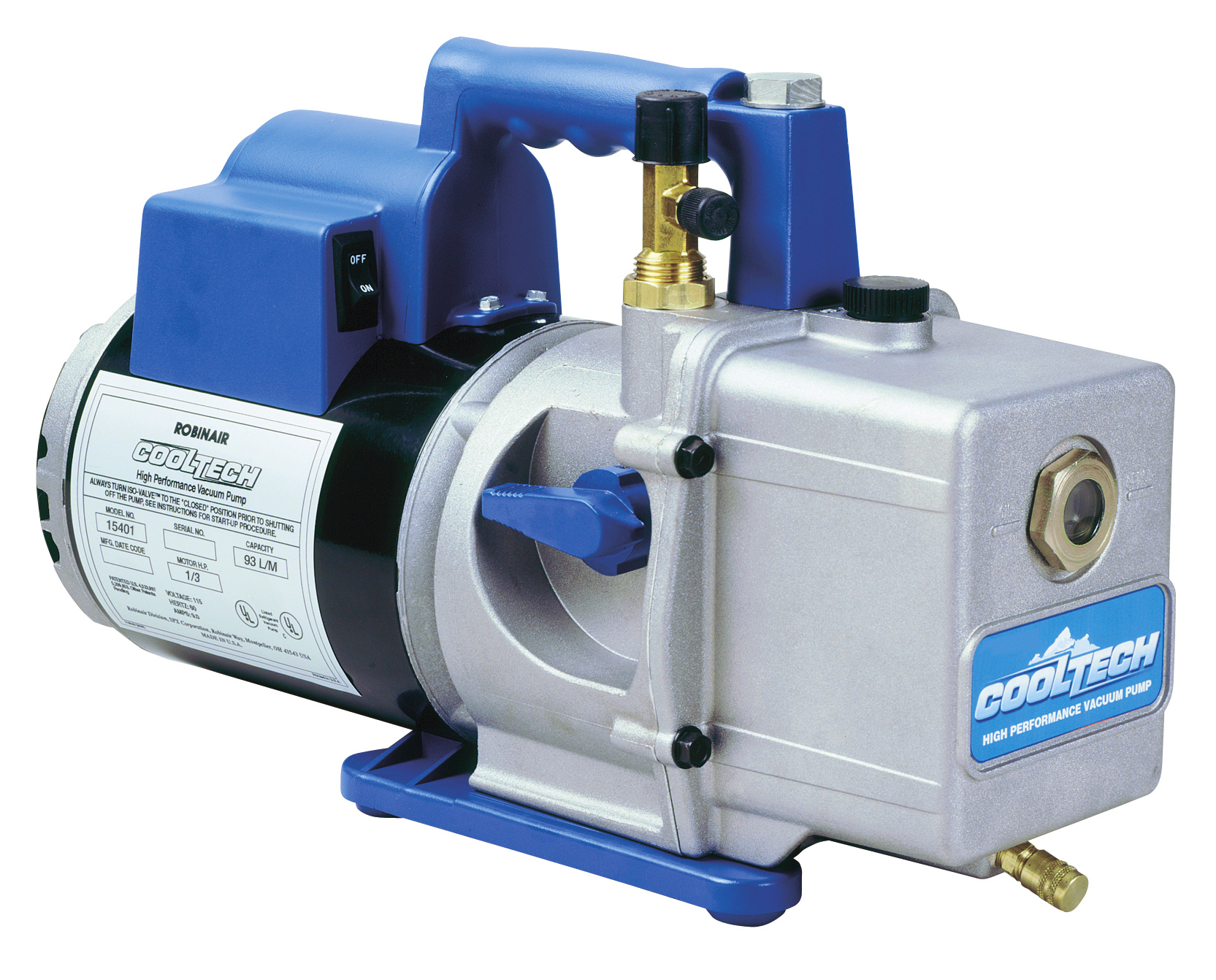

Robinair 15401 4 CFM vacuum pump for international use
15401

4 CFM Vacuum Pump 110-115V/220-250V (selectable)

Robinair vacuum pump features below. See Specifications tab for voltage, micron rating, recommended uses, dimensions and more.

  • Iso-Valve™: Isolates the pump from the system with just a quarter-turn
  • Gas ballast: Allows moist air to pass through the pump to mix with dry air, reducing condensation
  • Heavy-duty motor: Sealed bearing, high-torque design for easy startup and efficient operation
  • 2-stage rotary vane design: Powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time
  • Offset rotary vanes: Unique design builds more compression, reducing system pressure and removing more moisture
  • Molded polycarbonate base: Reduces vibration and provides balance during operation
  • Angled oil drain valve: faster, more complete draining
  • Top oil fill port: Better access when refilling oil
  • Cast aluminum body: Lightweight and durable die-cast aluminum reduces weight and creates a strong, durable pump
  • Quality: Performance-tested to meet Robinair’s quality, durability and longevity standards
  •  Intake screen: Prevents foreign matter from entering pumping chamber. External exhaust filter separates oil vapor from exhaust flow
  • Brass intakes: Reliable brass intake valves with Flare, ACME or both style fittings with tethered caps
  • “No Hassle” warranty: Exclusive over-the-counter replacement warranty. Robinair pumps can be returned to a distributor for an immediate exchange. U.S. and Canada only. In other locations, see your Robinair distributor
  • Multi-use: Designed for use on A/C-R systems using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkyl benzene oil, and PAG oil as lubricants
  • Not for use with ammonia or lithium bromide systems
  • Not for use with A4L or other flammable refrigerants
Compare Models
Free air displacement
94 liters/minute (3.3 CFM)
Factory micron rating
15 microns
Stages
2
Intake fitting
1/4" MFL & 1/2" MFL
Oil capacity
400 ml (13.5 oz)
Motor size
1/3 hp
Voltage
115V/220 - 250V 50/60 Hz
Approvals
CE
Weight
13 kg (29 lbs)
Dimensions
246 mm H x 143 mm W x 400 mm L (9.688" x 5.625" x 15.75")
Uses
Up to 30 tons (105 kW) Residential A/C, panel trucks & RVs
Cord length
1.82 m (6')
UPC
637335001114
Warranty
One Year

Compare to similar items

Robinair 15401 4 CFM vacuum pump for international use

15401


15115

15150 VacuMaster 1.5 CFM pump photo

15150

Free air displacement 94 liters/minute 1.5 CFM 1.5 CFM
Factory micron rating 15 microns 115 microns 50 microns
Stages 2 1 2
Intake fitting 1/4” MFL & 1/2” MFL 1/4” flare and 1/2” Acme 1/4” MFL and 3/8” Acme 3/8” FFL x 1/2” Acme adapter
Oil capacity 13.5 oz (400 ml) 10 oz. (300 ml) 7.4 oz. (219 ml)
Motor size 1/3 hp 1/4 hp 1/3 hp
Voltage 115V/220 - 250V 50/60 Hz 110V 60Hz 115V 60 Hz
Approvals CE CSA CSA
Uses Up to 30 tons (105kW) Residential A/C, panel trucks & RVs Up to 10 tons (35kW) domestic refrigeration, passenger cars Up to 10 tons (35kW) domestic refrigeration, passenger cars
Cord length 6’ (1.8 m) 6’ (1.8 m) 6’ (1.8 m)
