6 CFM Vacuum Pump

You are here

15600

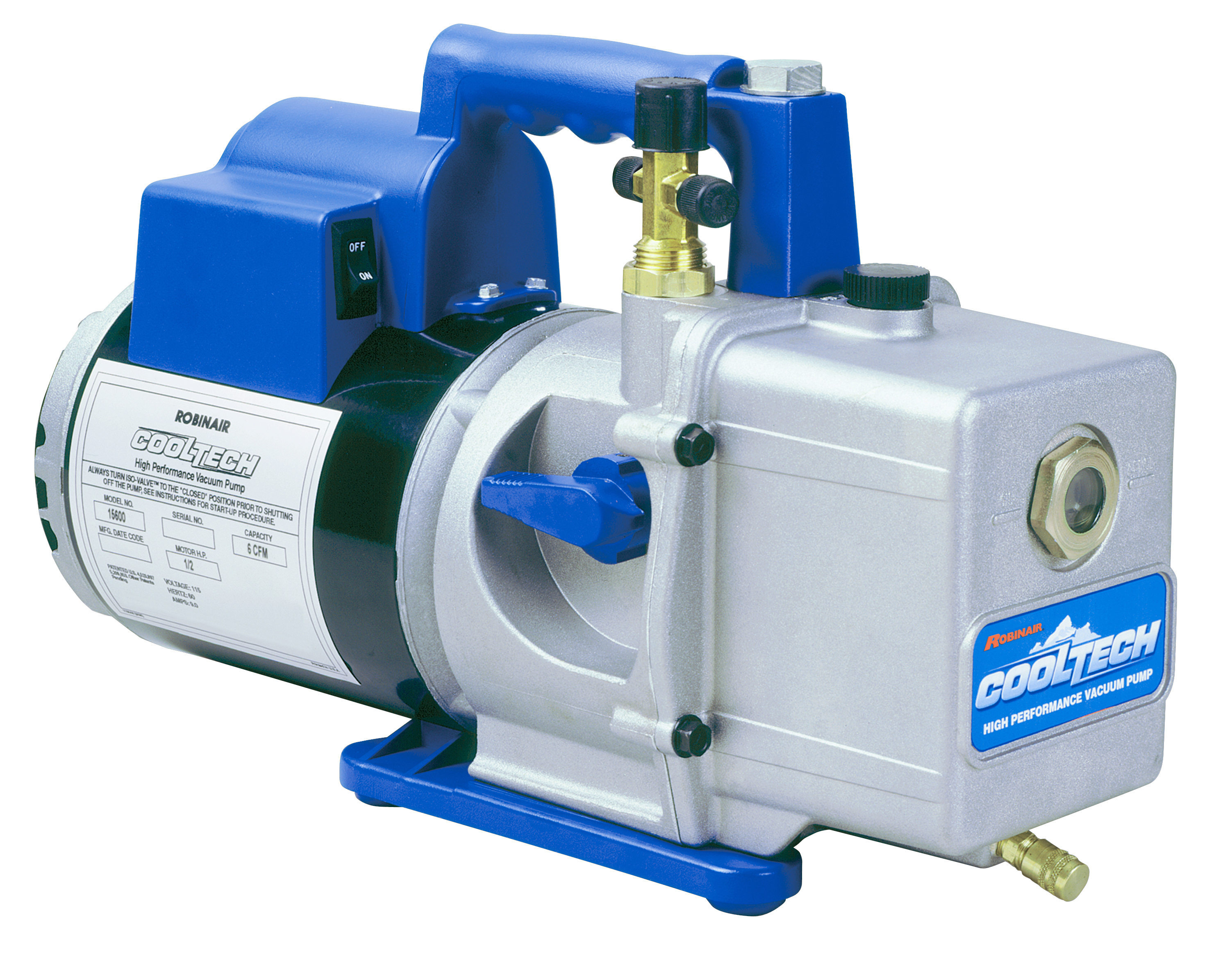

6 CFM Vacuum Pump

Robinair vacuum pump features below. See Specifications tab for voltage, micron rating, recommended uses, dimensions and more.

...

Read More

  • Specifications
  • Videos
  • Downloads
  • Free air displacement: 6 CFM
    Factory micron rating: 15 microns
    Stages: 2
    Intake fitting: 1/4" MFL, 3/8" MFL, & 1/2" MFL
    Oil capacity: 15 oz (445 ml)
    Motor size: 1/2 hp
    Voltage: 115V 60 Hz
    Approvals: UL
    Weight: 27 lbs (12.2 kg)
    Dimensions: 9.75" H x 5.625" W x 15.5" L (247 mm x 143 mm x 394 mm)
    Uses: Up to 50 tons (176 kW) Rooftop A/C systems, tractor/trailers, buses
    Cord length: 6' (1.8 m)
  • Videos:

  • Documents:

    High Resolution Images:
This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer, and LEAD, which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.
