Advanced R134A Heavy-Duty Recover, Recycle, Recharge Machine

You are here

34888HD

Advanced R134A Heavy-Duty Recover, Recycle, Recharge Machine

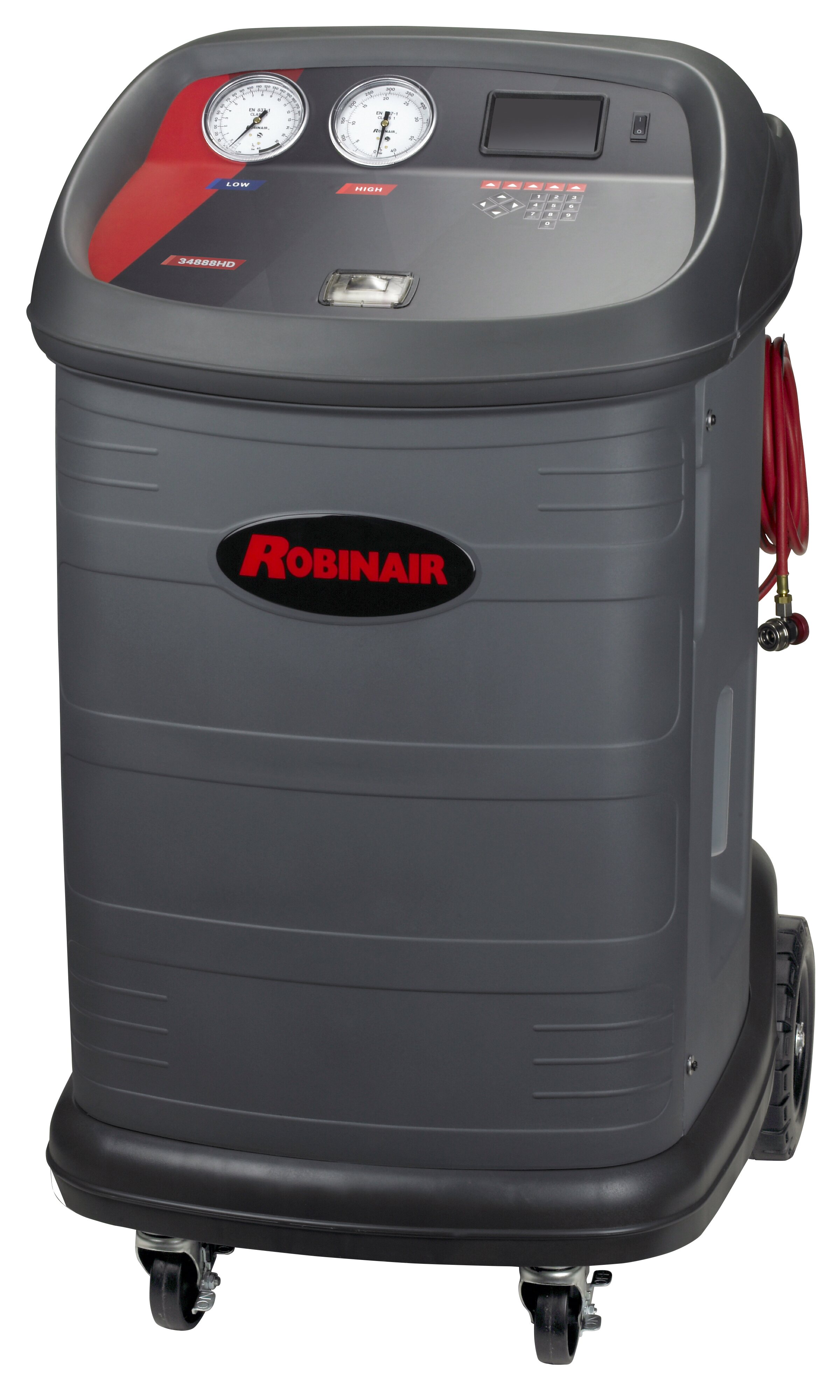

The Robinair 34888HD heavy duty machine recovers, recycles, evacuates, leak-tests and recharges R-134a with 98.5% efficiency in both small and large mobile air conditioning systems. The new design features a large capacity, removable tank and a liquid pump to tackle those larger A/C systems typically found in buses. The product also is equipped with a nitrogen port which allows a technician to use nitrogen to dry and leak test the vehicle's A/C system. The machine is fully automatic and is capable of recovering, evacuating, leak testing, charging and oil drain/inject – putting A/C lubricant back into the system. The 34888HD also boasts the ability to add a printer for capturing and retaining vehicle service data.

Images:

Tech Specs:

Dimensions:
30.00in x 26.75in x 45.75in
Weight:
280.00 lb
Product Specs:
Operating Temp Range | 32° - 120°F (0°-50°C)
Recovery Performance | >95% at 70 to 75° F (21 to 24°C) <30 minutes
Voltage | 125 VAC 60 Hz
Charge Performance | +/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)
Display | 5 cm x 9 cm graphical display
Filter-Drier Capacity | 300 lb (136kg), spin-on type
Hoses | 18 ft (5.5 m)
Weight | Approximately 295 lbs. (133 kg)
Compressor | 3/8 hp, pressure protected, oiled, hermetically sealed
Dimensions(HxWxD) | 49 in x 28 x 39 (124.5 cm x 71 cm x 99 cm)
Vacuum Pump | 5.0 cfm Dual Stage, 29.9 InHg
Languages | English, French, Spanish
Cylinder | External 50 lb. DOT
Certifications | SAE J2788
Includes:
34888HD Recover, Recycle, Recharge Machine
50 lb R134A DOT Refrigerant tank
Operator's Manual
Service center Listing Sheet
Vacuum Pump Oil SDS Sheet
Compressor oil SDS sheet
EPA Registration Sheet
Mobile Vehicle A/C Equipment certification form
Scale Calibration weight
Features:
Fully-Automatic Function: Program to recover, vacuum, leak test and charge without operating panel valves.
Automatic Oil Drain: A display reminds you to empty the graduated container to show the amount of oil to replace.
Oil Inject: Automatically inject oil back into the vehicle’s A/C systems.
Visual & Audible Alarm: Notifies the user when service is complete, or if a problem has occurred.
Nitrogen Port: Inject nitrogen into the vehicle's A/C system to dry or leak check the system.
Automatic Air Purge: Eliminates system-damaging air without monitoring gauges or opening valves.
Vacuum Feature: Defaults to 15 mins, programmable up to 99 mins. “Remaining time” is displayed.
Removable External Tank: The ability to switch tanks when performing multiple recoveries on large mobile A/C systems.
Display: Multilingual
Refrigerant Management System: Displays refrigerant use and monitors remaining filter life. Prompts appear when 1/3 of filter life remains.
Refrigerant Charging: Select a charge mode from high or low side, or use both sides.
Optional Printer
