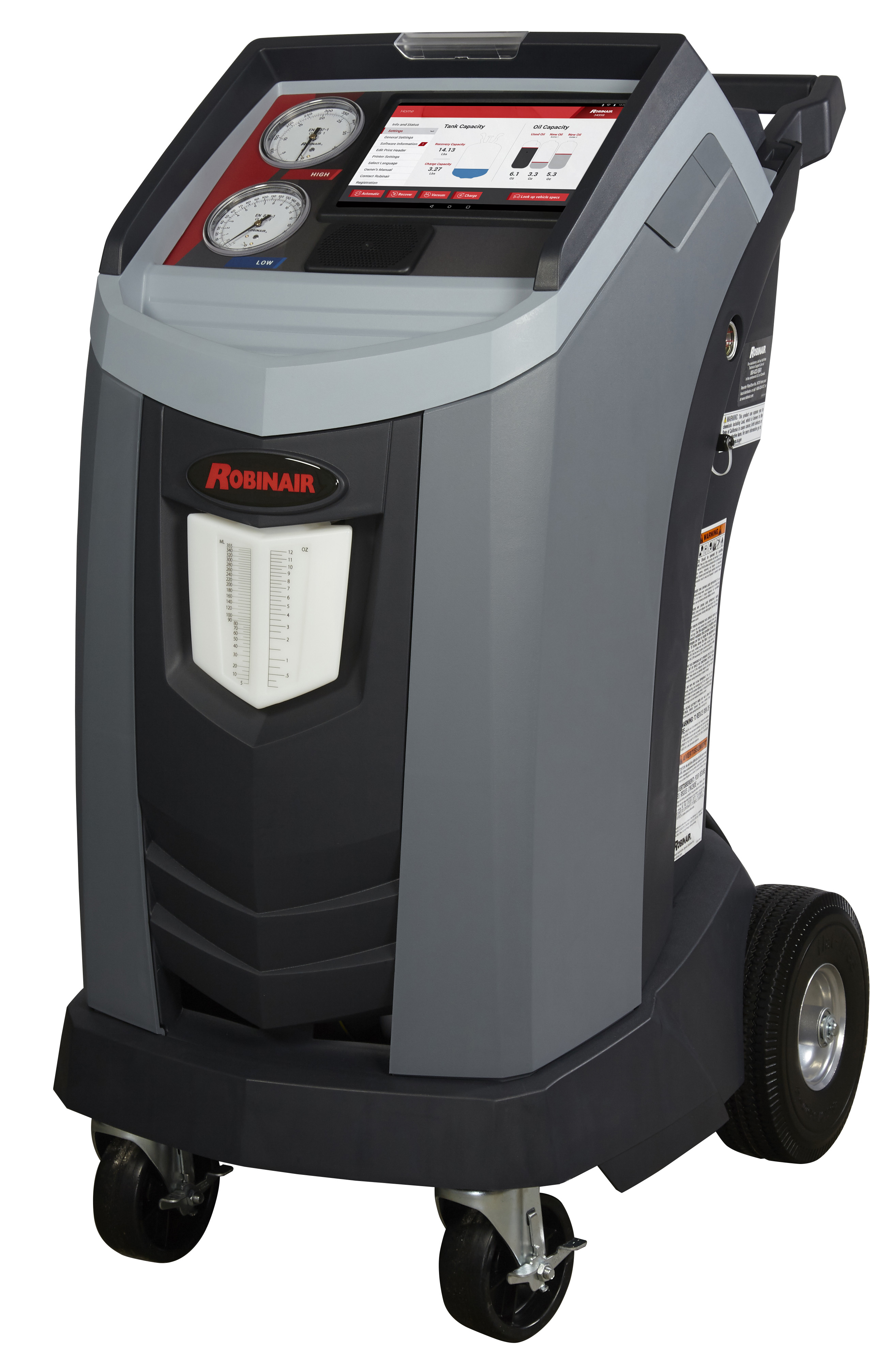

Connected R-134a ACS Machine

The Robinair 34998 Connected R-134a ACS Machine recovers, recycles, evacuates, leak-tests and recharges R-134a with improved 98.5% efficiency – unmatched by any competitor. The new design features a large 10" capacitive touch LCD display, and automated features including automatic internal refrigerant refill, oil drain and inject, and UV dye inject.

The 34998 also boasts full wireless capabilities for Wi-Fi or Bluetooth® communication, which enables automatic machine software updates and capacities database downloads. Use Google Cloud printing to print A/C service summary reports for customers or insurance companies. The Android operating system can also export service reports to store or share digitally.

The Wi-Fi-enabled machine also effectively manages and stores machine metrics and data related to services performed with the ACS machine to add to vehicle service reports.

This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer, and Lead and lead compounds, which is known to the State of California to cause birth defects or other reproductive harm. For more information for to www.P65Warnings.ca.gov.

Tech Specs:

Dimensions:
30.00in x 22.00in x 42.00in
Weight:
162.00 lb
Product Specs:
Operating Temperature Range | 32° - 120°F (0°-50°C)
Voltage | 125 VAC, 60 Hz
Recovery Performance | > 95% at 70 to 75° F (21 to 24°C) < 30 minutes
Charge Performance | +/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)
Display | 10" capacitive touch LCD display
Filter-Drier Capacity | 150 lb (75 kg), spin-on type
Hose Length | 9 ft (2.75 m)
Compressor | 3/8 hp, pressure protected, oiled, hermetically sealed
Vacuum Pump | 1.5 cfm Dual Stage, 29.9 InHg
Internal Cylinder | 30 lb. DOT
Languages | English, French, Spanish
Certifications | SAE J2788, UL 1963
Includes:
34998 R-134a ACS Machine
Calibration Check Weight
User Manual
Extended Maintenance flyer
Service Center Locations listing sheet
MACs 609 Certification Information sheet
MVAC Equipment Certification form
SDS sheet - Vacuum pump oil
SDS sheet - POE Compressor oil
Features:

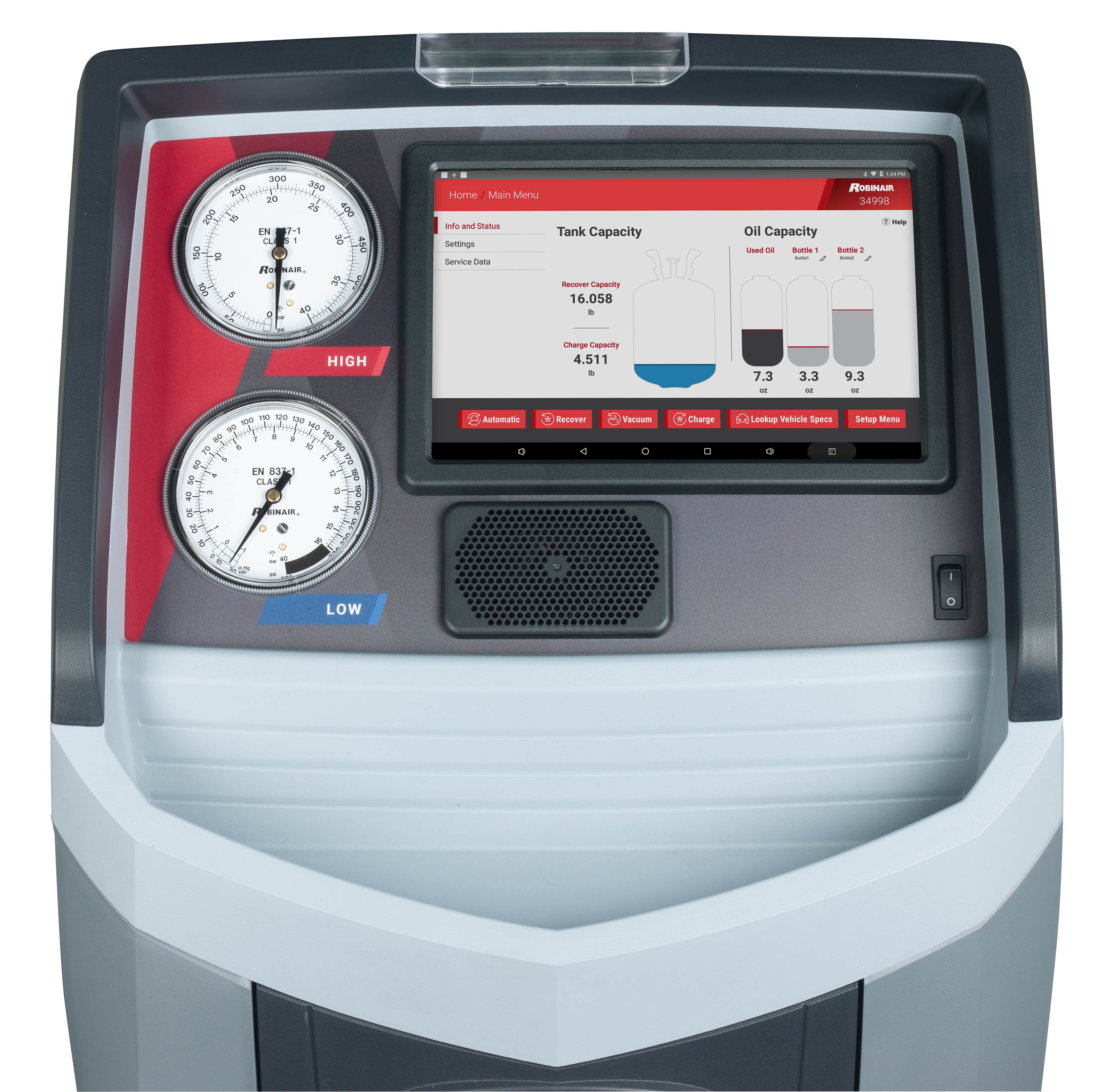

New 10" capacitive LCD touch screen and intuitive user interface makes navigation much easier and beginning service quicker
Incorporated Wi-Fi and Bluetooth wireless technology enable many new features and capabilities making this the most advanced A/C RRR machine on the market today
Automatic updates ensure your machine always has the most current software, as well as access to new features and capabilities as they become available

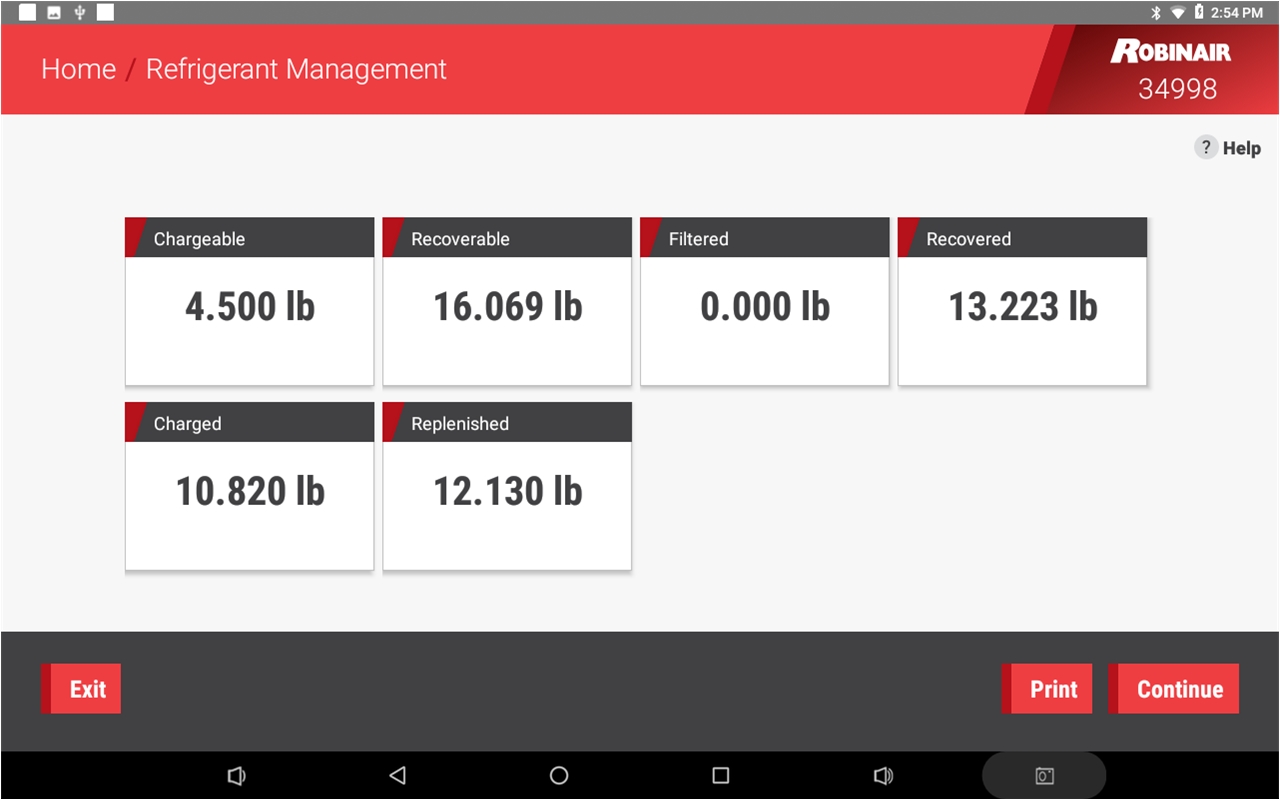

Service data management and machine metrics can be retained and stored allowing for proactive service reminders, refrigerant use tracking and reporting, or recalling prior vehicle services performed by the ACS machine

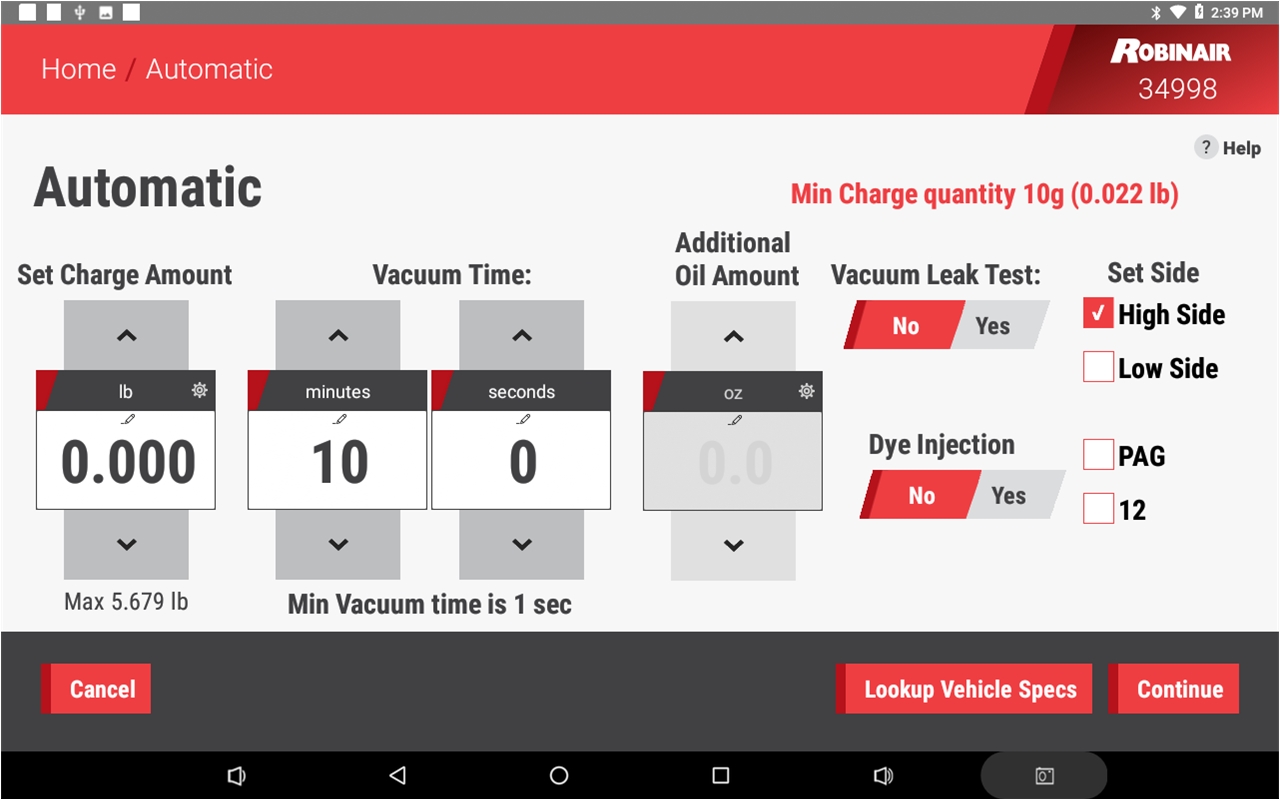

Fully-automatic function allows user to program to recover, vacuum, leak test and charge without operating panel valves, or run functions independently as specific service functions are needed
Automatic oil drain and inject enables the machine to measure the amount of oil removed from the vehicle and automatically put the same amount back in freeing the user from measuring the amount of oil removed

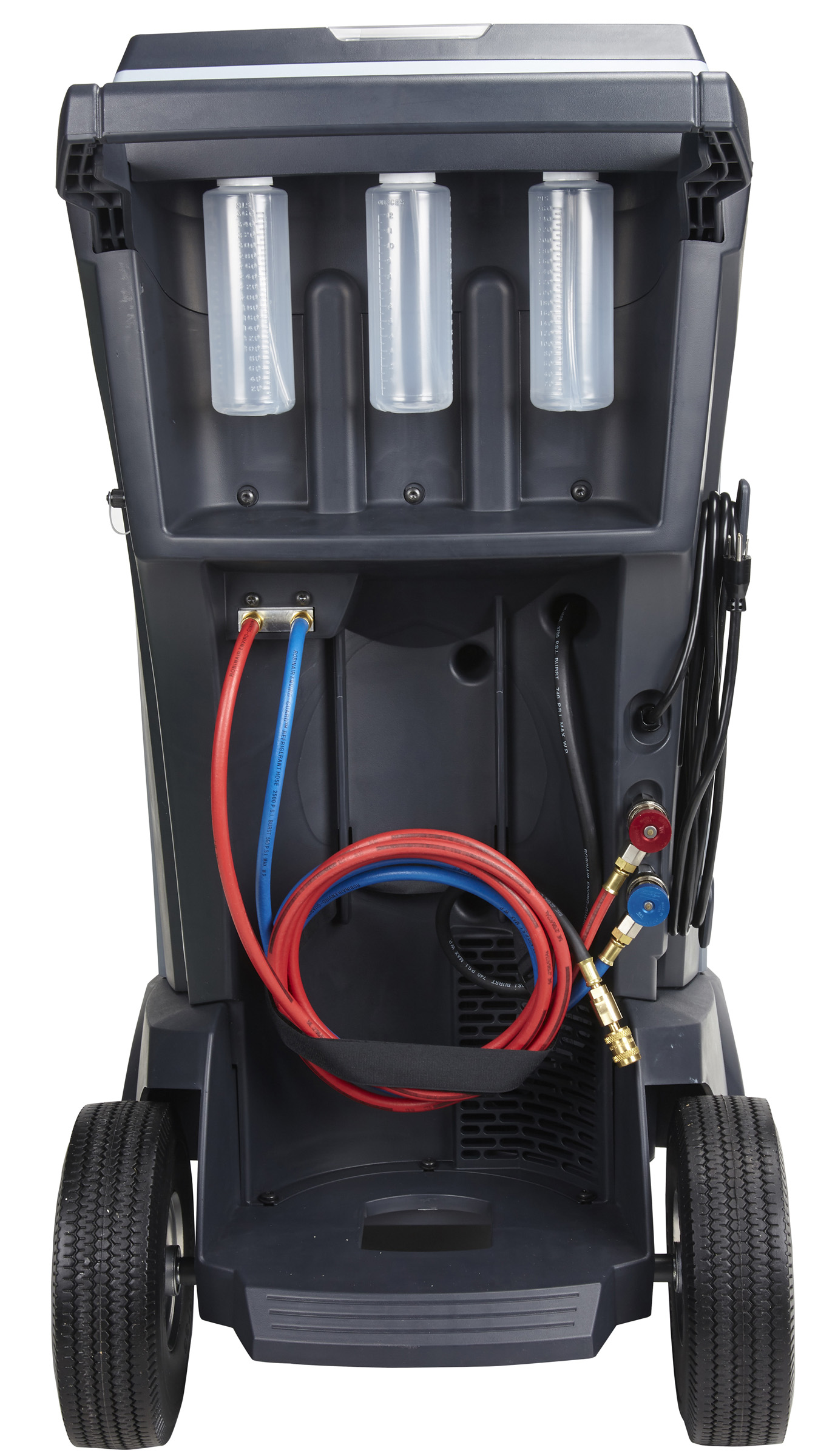

Multiple oil bottles gives the machine the flexibility to store and inject two different types of oil saving the user time when servicing multiple vehicles
Automatic Dye Inject gives the user the ability to use the machine to inject UV dye into a vehicle’s A/C system
Automatic Refrigerant Refill maintains a user-selected amount of refrigerant in the internal vessel and signals when it’s time to change new supply tank, no monitoring of refrigerant level is required
Network printing capability allows technician to print a detailed services provided report for the customer
Utilize Robinair Bluetooth accessory devices for further optimization of A/C service, enabling automation and data gathering during service to accurately diagnose and service the vehicle
