34288NI-230

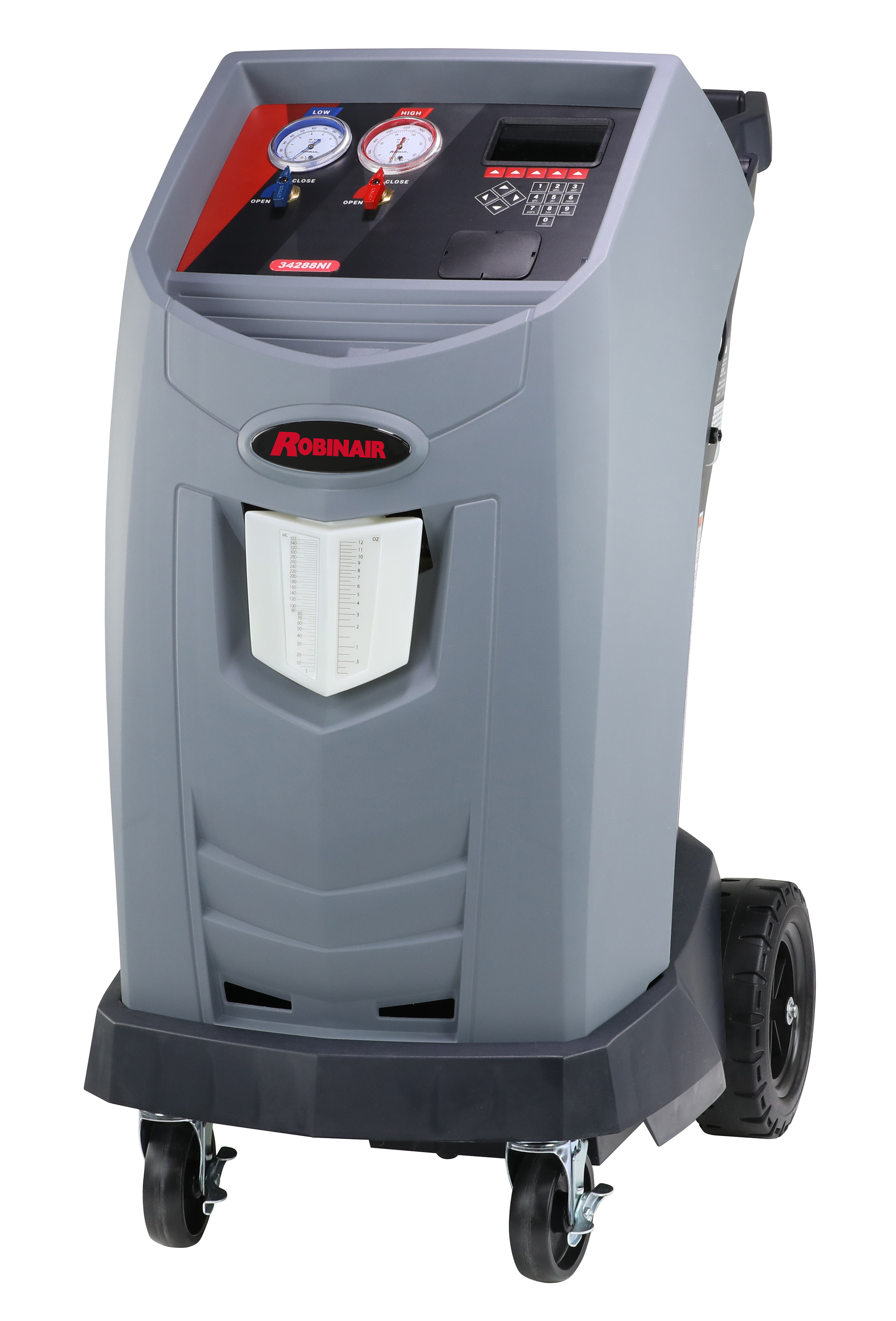

Economy R-134a Recover, Recycle, Recharge Machine, 230V

The 34288NI-230 combines simple operation with superior accuracy. It recovers, recycles, evacuates and recharges R-134A mobile A/C systems quickly and accurately. The product is designed to meet and outperform the most current SAE J-2788 standards for accuracy and efficiency, recovering more than 95% of the refrigerant in a...

Read More

  • Specifications
  • Features
  • Downloads
  • Dimensions | 107 cm x 56 cm x 76 cm
    Display | 5 × 9 cm (4.3-in. diag) graphical LCD
    Filter Life Capacity | 68 kg (150 lb)
    Humidity | 32.2°C (90°F), 80% RH non-condensing
    Gauges | Ø 80 mm (3.15 in.)
    Max. Pressure | 27.3 bar (396 PSI)
    Noise | <70 dB(A)
    Nominal Voltage | 230V, 50/60 Hz
    Oil Drain Bottle Capacity | 355 ml (12 oz)
    Oil Inject Bottle Capacity | 355 ml (12 oz)
    Operating Temperature | 10°C to 50°C (50°F to 122°F)
    Power Consumption | 1380 VA
    Vacuum Pump | 2.5 CFM (70 L/m) @ 60 Hz : 2.0 CFM (58 L/m) @ 50 Hz
    Service Hoses | 2.75 m (9 ft) / SAE J2196
    Internal cylinder: 30 lb DOT (13.6 kg); 22 lb (10 kg) capacity
    Weight | 73 kg (161 lb)
  • Automatic Oil Drain: Automatically drains oil recovered during the recovery operation and puts the oil in a graduated container showing the user how much needs to be injected back into the system.
    Oil Inject: Use the machine to get new lubricant oil back into the vehicle's A/C system
    Automatic Air Purge: Eliminates damaging air without monitoring gauges or opening valves.
    4.3 in full color graphics display
    Programmable Vacuum Function: Defaults to 15 mins, programmable up to 99 mins. “Remaining time” is displayed.
    Refrigerant Management System: Displays refrigerant use and monitors remaining filter life. Prompts appear when 1/3 of filter life remains
    Optional Printer: Add the ability to print service summaries from the machine (Not included with the machine)
