Multi-refrigerant recover, recycle, recharge machine

You are here

17800C

Multi-refrigerant recover, recycle, recharge machine

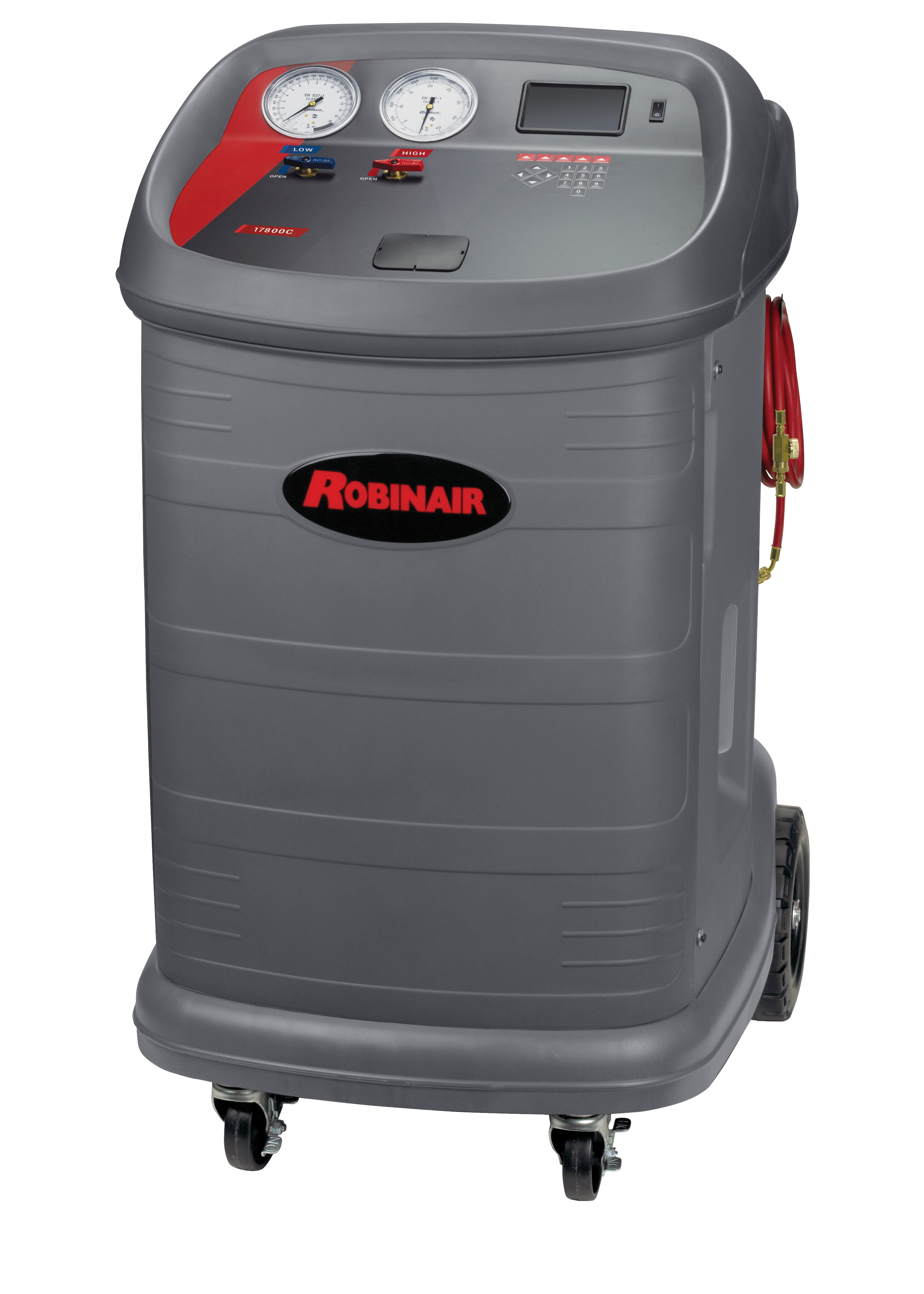

The Robinair 17800C can recover, recycle, evacuate and recharge multiple refrigerants, all in one fast and continuous operation through one hook-up. It’s ideal for mass transit vehicles, buses, refrigerated trailers or containers and other applications that use refrigerants other than R-134a and not typically found in mobile vehicle applications. Recover, recycle, evacuate and recharge R-12, R-134a, R-22, R-404A, R-407C and many other medium-pressure and high-pressure refrigerant blends.

Images:

Tech Specs:

Dimensions:
26.00in x 30.00in x 47.00in
Weight:
280.00 lb
Product Specs:
Voltage | 115VAC, 60Hz
Operating Temp Range | 50 to 105° F (11 to 41° C)
Recovery Rate | Vapor, 0.5 lbs./min and Liquid 1 lbs./min
Vacuum Pump | 5.0 cfm at 60 Hz
Hose Length | 18 ft. (5.5 m)
Recycling Filter | 300 lbs. refrigerant capacity
Dimensions | 47” H x 26” W x 30” D
Weight | 280 lbs. (without tank)
Certification | UL 1963, UL STANDARD FOR SAFETY REFRIGERANT RECOVERY/RECYCLING EQUIPMENT
Includes:
17800C Multi-refrigerant A/C RRR machine
Operators manual
Service Center Listing Sheet
Vacuum Pump Oil MSDS sheet (Multi-language; English, French, Latin American Spanish)
Compressor Oil MSDS sheet (Multi-language; English, French, Latin American Spanish)
EPA registration sheet/envelope
Calibration weight
¼” Flare hose set
50 lb. ¼” Flare fitting refrigerant tank
Features:
Automatically controls machine functions, leading the user through operations and also notifying when it’s time to change the filter drier, and vacuum pump oil
Automatically adjusts from liquid to vapor for fast and efficient recovery.
Electronic scale makes it simple to recharge to factory specifications; also weighs recovered refrigerant and provides tank overfill protection.
5 cfm vacuum pump is large enough to thoroughly evacuate almost any system; making it ready for recharging.
Manual air purge function to remove any non-condensable contaminants.
Vacuum leak test function allows user to monitor the system for vacuum decay to determine if a leak exists in the A/C system
Automatic oil drain allows the user to see amount of oil removed from the system being serviced.
Heavy-duty filter can handle up to 300 lbs. of refrigerant, effectively removing moisture and acid from the refrigerant.
Easy to view 4.3” color graphical display.
Maintenance counters to monitor cumulative amounts of refrigerant recovered and charged, as well as other machine operation variables.
Optional printer can be added to expand capabilities and provide printed record of service performed.
Compatible with R12, R22, R134A, R401A, R401B, R402A, R402B, R404A, R407A, R407B, R407C, R410A, R500, R502, and R507 refrigerants.
Category:
Automotive
A/C Recovery and Recycling
Refrigerant Recovery and Recharging
