34988NI-SL

Premium R134a Refrigerant Recover, Recycle, Recharge Machine for Mobile Service

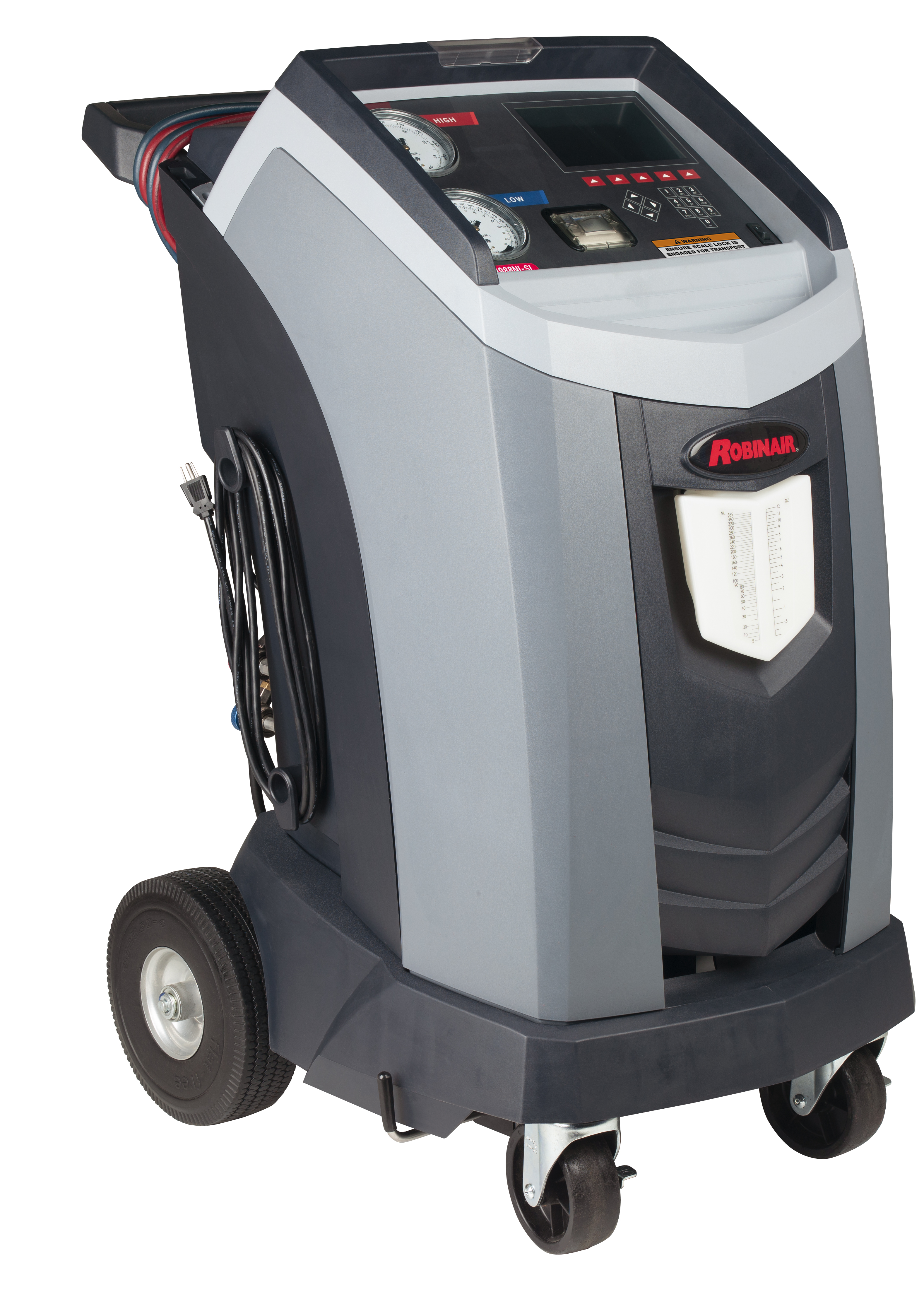

The Robinair 34988NI-SL is a fully automatic premium R-134a ACS machine with an integrated scale lock, designed for mobile service. The mechanical scale lock eliminates the need to recalibrate your refrigerant scale after transporting the machine long distances, saving time. Accessible from outside the machine, the lock secures...

Read More

  • Specifications
  • Features
  • Downloads
  • Dimensions | 107 cm x 61 cm x 76 cm
    Display | 17.8 cm (7 in) Graphical display
    Filter | 68 kg (150 lbs)
    Humidity | 32.2°C (90°F), 80% RH non-condensing
    Gauges | Ø 100 mm (3.9 in.)
    Max Pressure | 27 bar (390 PSI)
    Noise | <70 dB(A)
    Nominal Voltage | 115V, 60 Hz
    Oil Drain Bottle Capacity | 355 ml (12 oz)
    Oil Inject & UV Dye Bottle Capacity | 355 ml (12 oz)
    Operating Temperature | 10°C to 50°C (50°F to 122°F)
    Power Consumption | 1380 VA
    Vacuum pump | 1.5 CFM (42 L/m) @ 60 Hz
    Service Hoses | 12' (3.65m) SAE J2196
    Weight | 73 kg (161 lb)
  • Fully automatic operation frees technician to perform other tasks while servicing the vehicle's A/C system
    Automatic oil drain and inject feature enables the machine to measure amount of oil removed from the vehicle and automatically puts the same amount back in free the user from measuring the amount of oil removed

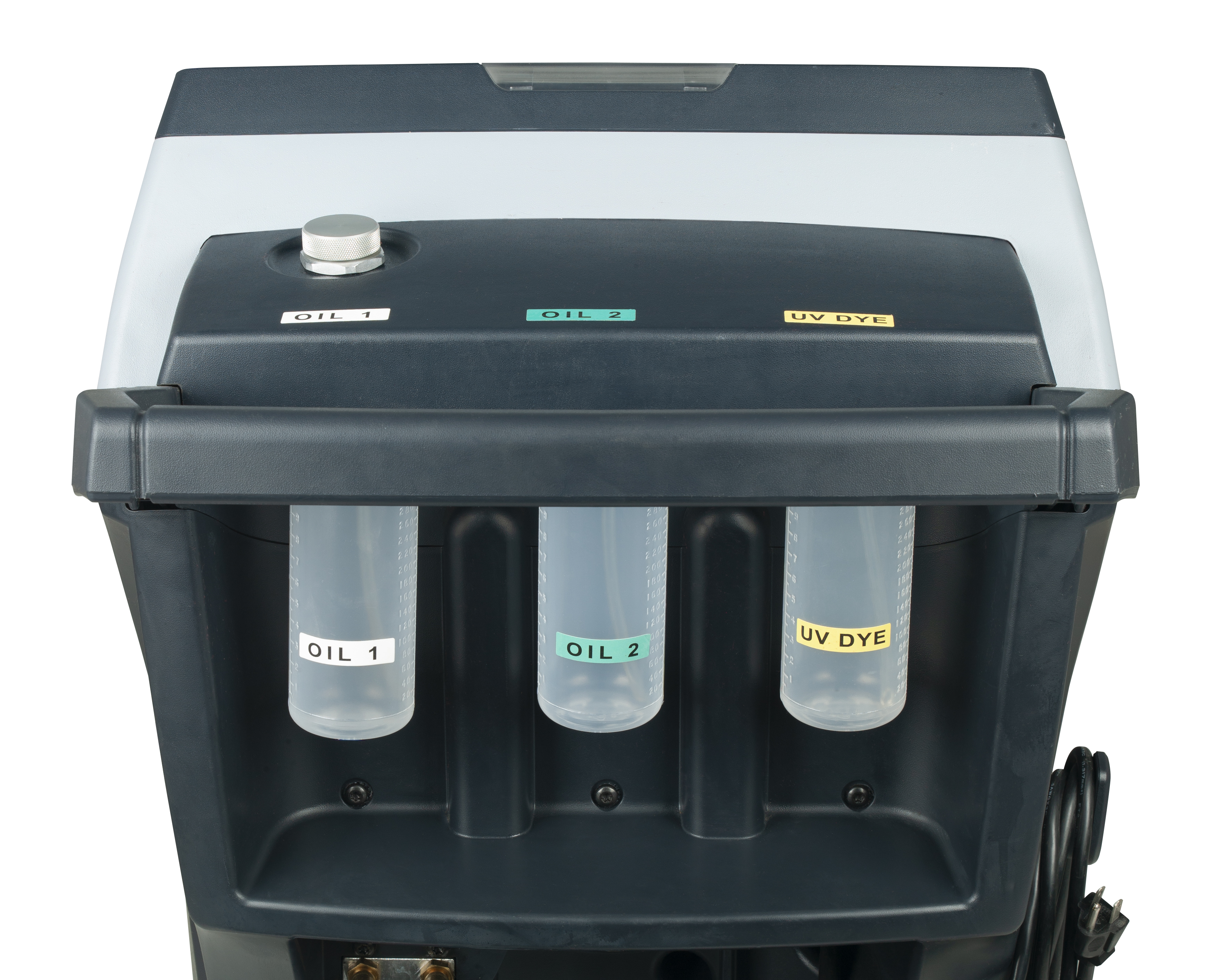

    Multiple oil bottles gives the machine the flexibility to store and inject two different types of oil saving the user time when servicing multiple vehicles
    Large, easy-to-read graphical display
    Standard onboard printer gives the user the ability to print service data to present to a customer after service
    Unique Automatic Refrigerant Refill maintains a user-selectable amount of refrigerant in an internal vessel and signals when it’s time to change supply tank, no monitoring required
    Programmable vacuum feature defaults to 15 mins, but allows the user to select desired vacuum time up to 99 minutes
    Automatic Air Purge eliminates system-damaging air without monitoring gauges or opening valves
    Save before and after service data allows the user to store before and after service information by vehicle
    Visual and audible alarm notifies the user when service is complete, or if a problem has occurred
    Automatic Dye Inject gives the user the ability to use the machine to inject UV dye into a vehicle’s A/C system
    Optional refrigerant and oil database includes A/C charge and oil capacities for North American market vehicles
    Integrated mechanical scale lock to protect the scale during transport
    Warning light wiring - Connector provided to wire in an a warning light alerting the user if scale lock is not engaged prior to driving (Optional)
    Tie down straps included with recommended tie down method and where to connect on machine
    Uses 34724 filter or 13172 maintenance kit
