34988NI

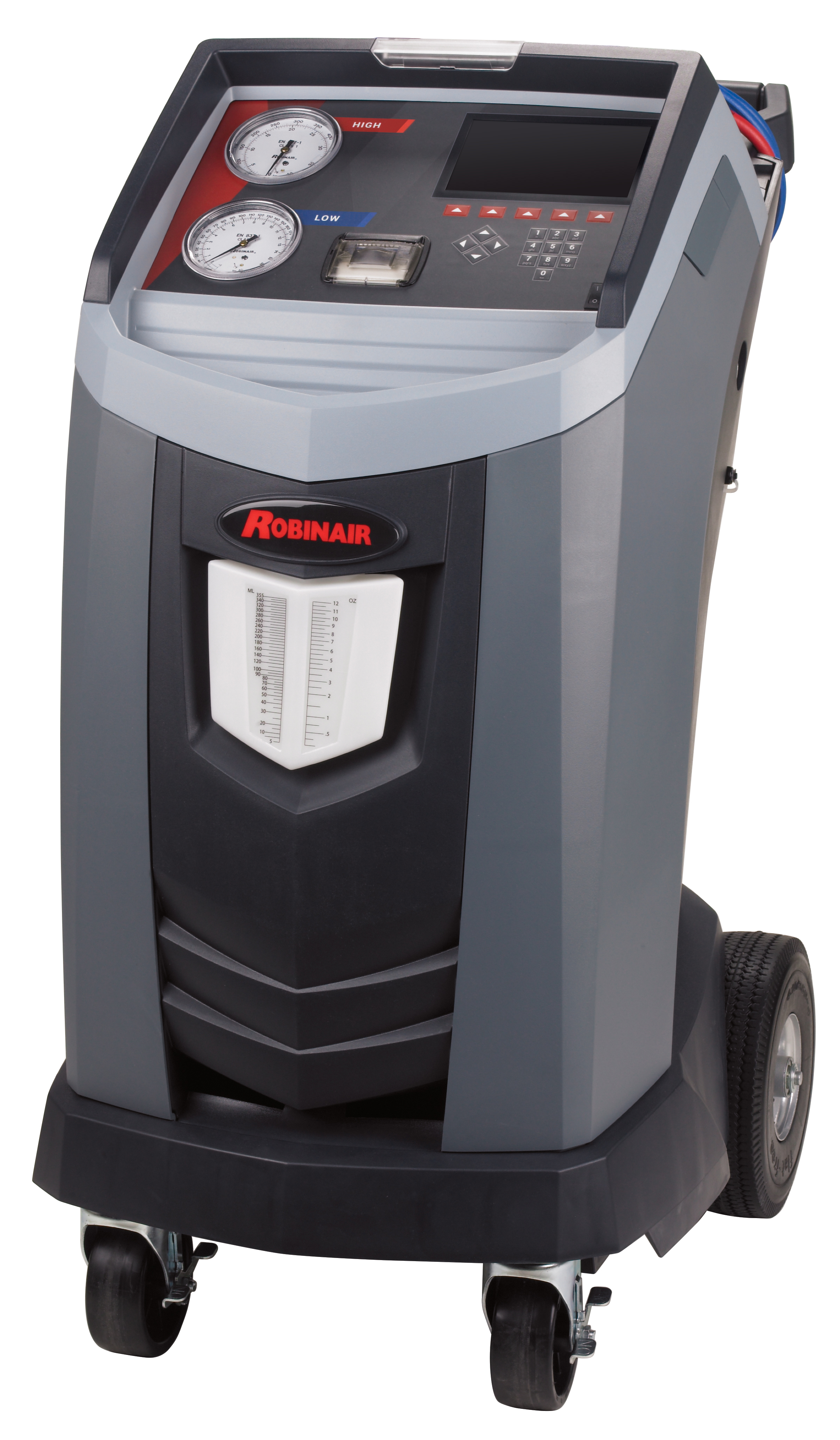

Premium Refrigerant Recover, Recycle, Recharge Machine

The new Robinair 34988NI Premium A/C Machine combines ease of use and superior accuracy. It recovers, recycles, evacuates, leak tests and recharges R-134a vehicle systems quickly and accurately. The fully automatic function will recover, vacuum, leak test and charge on its own without the need to...

Where to Buy Compare

Specifications
Features
Downloads

Operating Temperature: 32° - 120°F (0°-50°C)

Storage Temperature: 0 to 150°F (-18 to 66°C)

Recovery Performance: >95% at 70 to 75° F (21 to 24°C) <30 minutes

Charge Performance: +/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)

Compressor: 3/8 hp, pressure protected, oiled, hermetically sealed

Vacuum Pump: 1.5 cfm dual stage, 29.9 InHg

Hoses: 9 ft (2.75 m)

Filter Capacity: 150 lb (68kg), spin-on type

Internal cylinder: 30 lb DOT (13.6 kg); 22 lb (10 kg) capacity

Operating voltage: 125 VAC 60 Hz

Display: 7 in. LCD graphical display

Languages: English, French, Spanish, Portuguese

Certifications: SAE J2788

Refrigerant compatibility: R-134a

Uses 34724 filter or 13172 maintenance kit
Fully automatic operation frees technican to perform other tasks while servicing the vehicle's A/C system

Automatic oil drain and inject feature enables the machine to measure amount of oil removed from the vehicle and automatically puts the same amount back in free the user from measuring the amount of oil removed

Multiple oil bottles gives the machine the flexibility to store and inject two different types of oil saving the user time when servicing multiple vehicles

Large, easy-to-read graphical display

Standard onboard printer gives the user the ability to print service data to present to a customer after service

Unique Automatic Refrigerant Refill maintains a user-selectable amount of refrigerant in an internal vessel and signals when it’s time to change supply tank, no monitoring required

Programmable vacuum feature defaults to 15 mins, but allows the user to select desired vacuum time up to 99 minutes

Automatic Air Purge eliminates system-damaging air without monitoring gauges or opening valves

Save before and after service data allows the user to store before and after service information by vehicle

Visual and audible alarm notifies the user when service is complete, or if a problem has occurred

Automatic Dye Inject gives the user the ability to use the machine to inject UV dye into a vehicle’s A/C system

Optional refrigerant and oil database includes A/C charge and oil capacities for North American market vehicles

Uses 34724 filter or 13172 maintenance kit
Documents:

Documents:
Product Brochure (Document # 16-70)
Robinair A/C Machine Comparison Chart (Document # 16-74)
R-1234yf vs R-134a Robinair machine comparison
Robinair 34988NI instruction manual
