Refrigerant Recovery, Recycle, Recharge

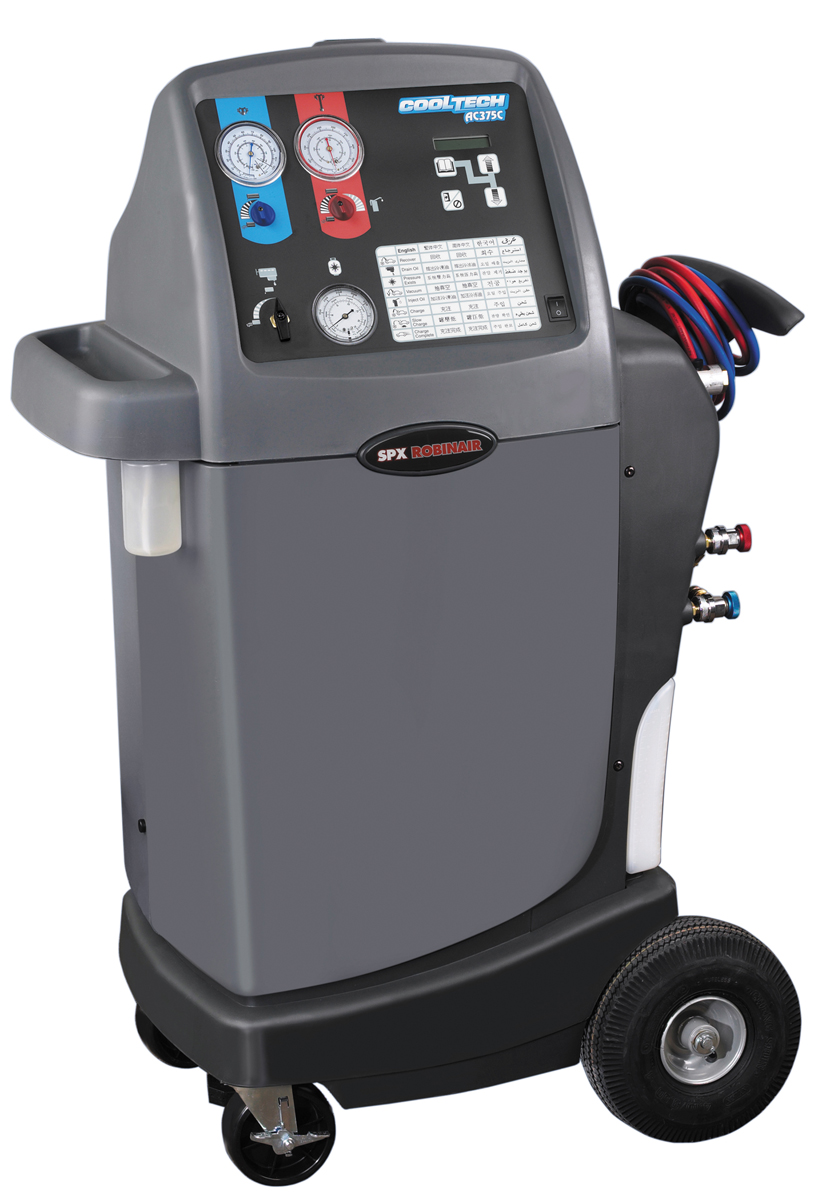

International Model for R-134a, R12 Recovery, Recycling, Evacuation, and Recharging. Combines Simple Operation with Superior Accuracy.

• Automatic recovery/recharge by weight

• Automatic vacuum by time

• Automatic Air Purge - Eliminates damaging air without any monitoring of gauges or opening of valves.

• Oil Drain - The display reminds you to drain the system oil captured during recovery. Calibrations on the container clearly show you how much oil needs to be replaced.

• Oil Inject - System prompts user to inject oil before charge. Reservoir provides visual reference on calibrated container.

• Electronic Scale - The scale is mounted internally for protection, and has a dampening mechanism that protects against impact shocks such as movement over rough surfaces. The scale weighs recovered refrigerant and charges by weight for greatest accuracy.

• Internal Storage Vessel - Refrigerant is recovered into and charged out of this vessel, which is permanently mounted to the electronic scale for continuing reliability.

• Internal Manifold - Block manifold contains solenoids that control refrigerant flow for easy operation, also reducing the possibility of leaking connections.

• Maintenance Prompts - System prompts user to change vacuum pump oil when needed. System prompts user to change filter-drier when needed.

• Ergonomic Design - The cabinet is easy to maneuver between service bays and position near the vehicle.

• Gauges - The high and low side gauges are mounted at an angle that's easy to see.

• Unit of Measure - Select pounds or kilograms through the menu.

Features that Speed Service:

• 142 l/m vacuum pump for fast, thorough pull-down.

• Heavy-duty compressor pulls from both sides during recovery.

• Single pass recycling.

• Oil injector lets you add system oil in seconds.

Tech Specs:

24.00in x 36.00in x 56.00in
A/C Recovery and Recycling
Refrigerant Recovery and Recharging
Replacement Parts :
