Tracer Gas Leak Detector

You are here


Tracer Gas Leak Detector

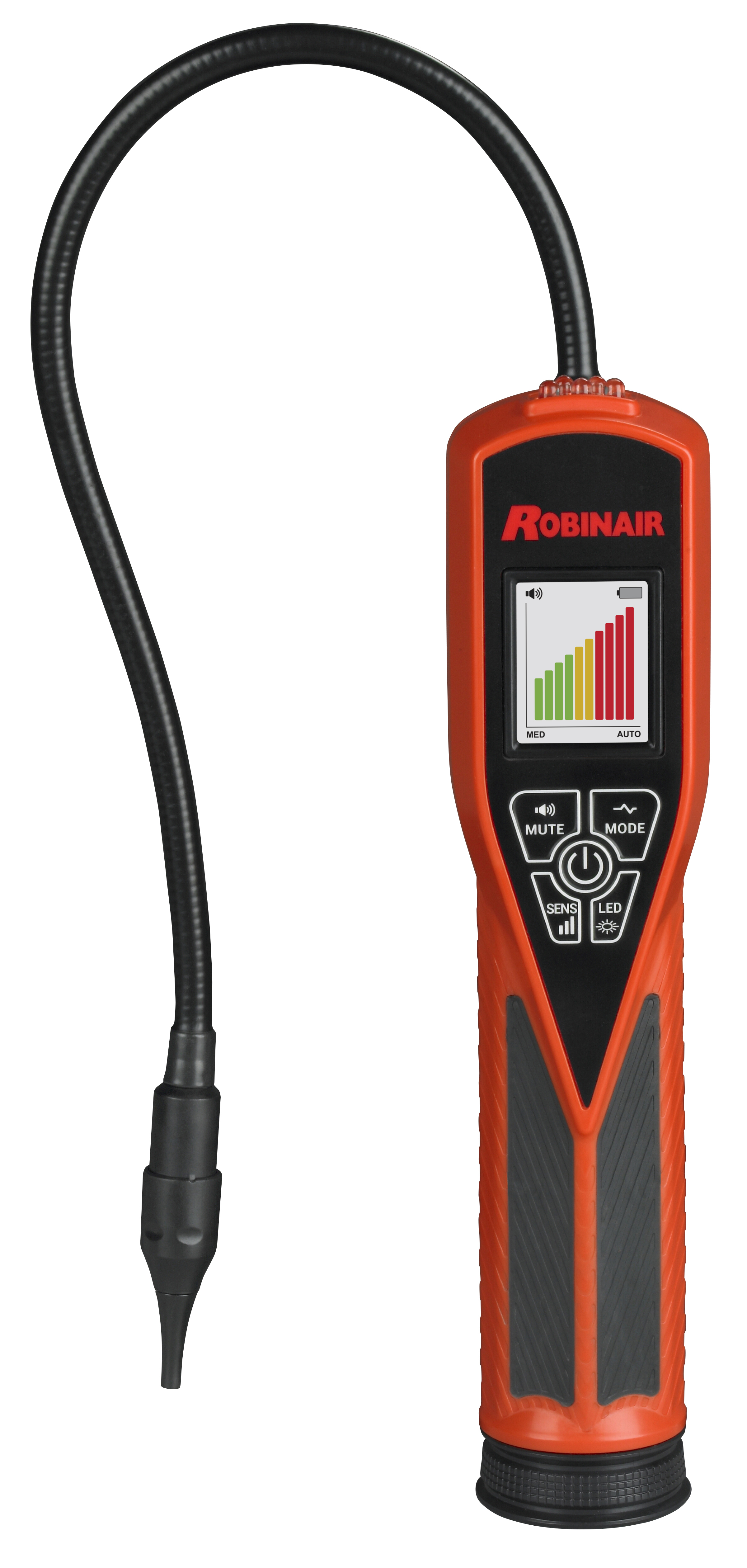

The LD9-TG features sensor technology designed to detect a 5% hydrogen / 95% nitrogen tracer gas mixture. The LD9-TG’s full color liquid crystal display (LCD) and sweep mode function convey messages, graphics, and prompts to help technicians locate the source of a leak and ensure the leak detector is always at optimal performance. Detects leaks as small as 0.5 ounces/year for R134a and .015 ounces/year for R1234yf.

The UV wavelength technology is used with tracer gas instead of liquid refrigerant to locate system leaks. The LD9-TG is compatible with most hydrogen-based tracer gases. 10-year sensor life. A patented 3 LED inspection light aids in locating and inspecting suspected leak sources.

Tracer gas sold separately. Meets SAE J2970 industry standards.


Tech Specs:

2.50in x 1.75in x 10.75in
1.50 lb
Product Specs:
Sensitivity | Equivalent: .05 oz/yr R134a; .015 oz/yr R1234yf
UV Mode | 3 UV LED
UV Wave-length | 395–415 nanometers
Sensor Life | > 10 years
Response Time | Instantaneous
Power Supply | 4 AA alkaline batteries
Battery Life | 4 hours continuous
Warm up time | < 20 seconds
LCD Display | LCD Display
Product Length | 17 inches (43 cm)
Warranty | 2 years (includes sensor)
Leak Detector, Dual Mode Tracer Gas
4 AA alkaline batteries
Full color LCD with user-friendly message and error screens
Sweep mode function to pinpoint leak source
Automatic calibration and reset to ambient air
High-intensity LED inspection light
Patented 3 LED ultraviolet (UV) lights with 395–415 nm wavelengths optimized for A/C dye fluorescence
True mechanical pump
Low battery indicator
Audio mute function
Certified to SAE J2970
