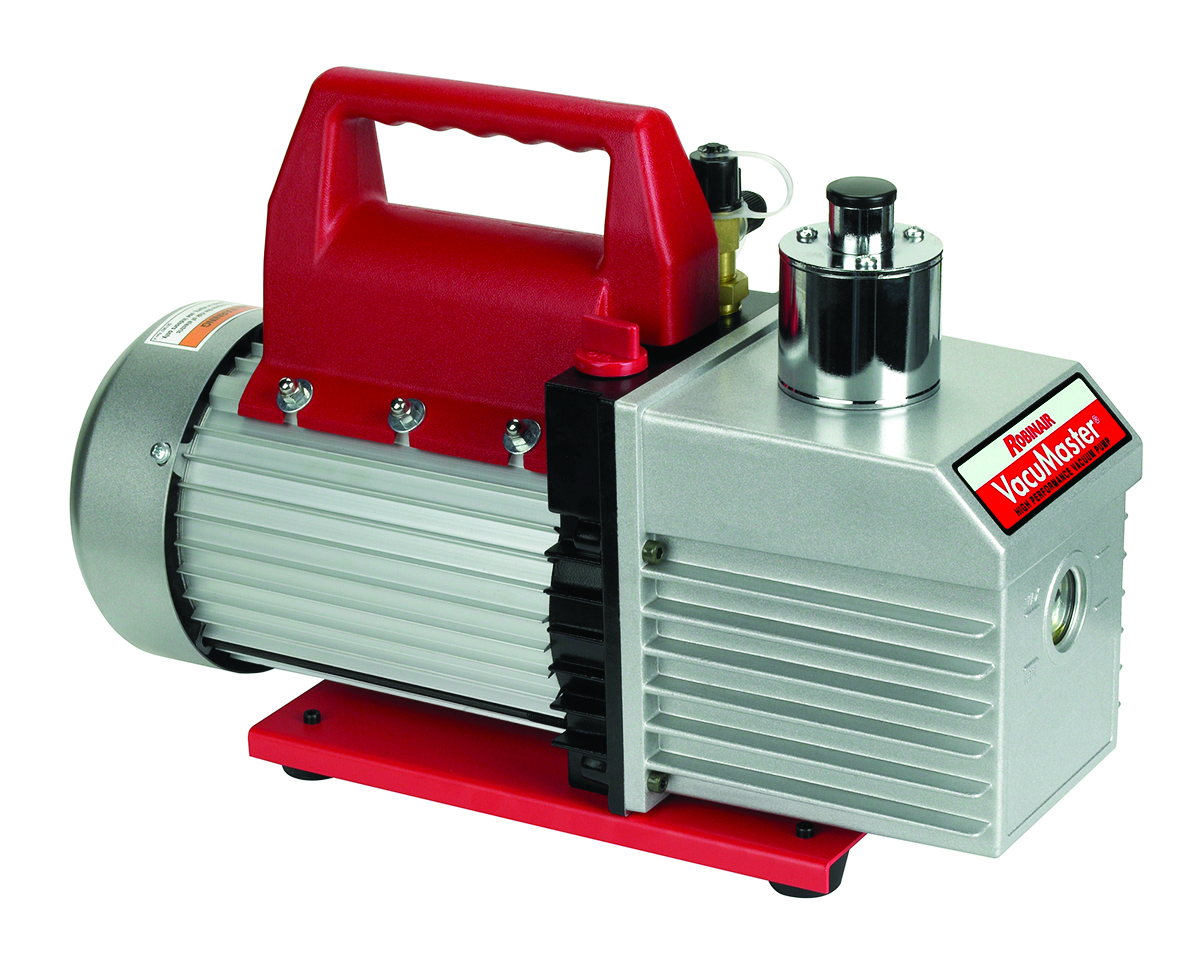

VacuMaster 8 CFM Vacuum Pump

Robinair VacuMaster™ vacuum pump features below. See Specifications tab for voltage, micron rating, recommended uses, dimensions and more.

...

Read More

  • Specifications
  • Videos
  • Downloads
  • Free air displacement: 8 CFM
    Factory micron rating: 35 microns
    Stages: 2
    Intake fitting: 1/4" MFL and 3/8" MFL
    Oil capacity: 18.6 oz. (550 ml)
    Motor size: 1 hp
    Voltage: 115V 60Hz
    Approvals: CSA
    Weight: 37 lbs. (16.8 kg)
    Dimensions: 16" H x 6" W x 10" L (406" mm x 152mm x 254mm)
    Uses: Up to 70 tons (246 kW)
    Cord length: 6' (1.8 m)
