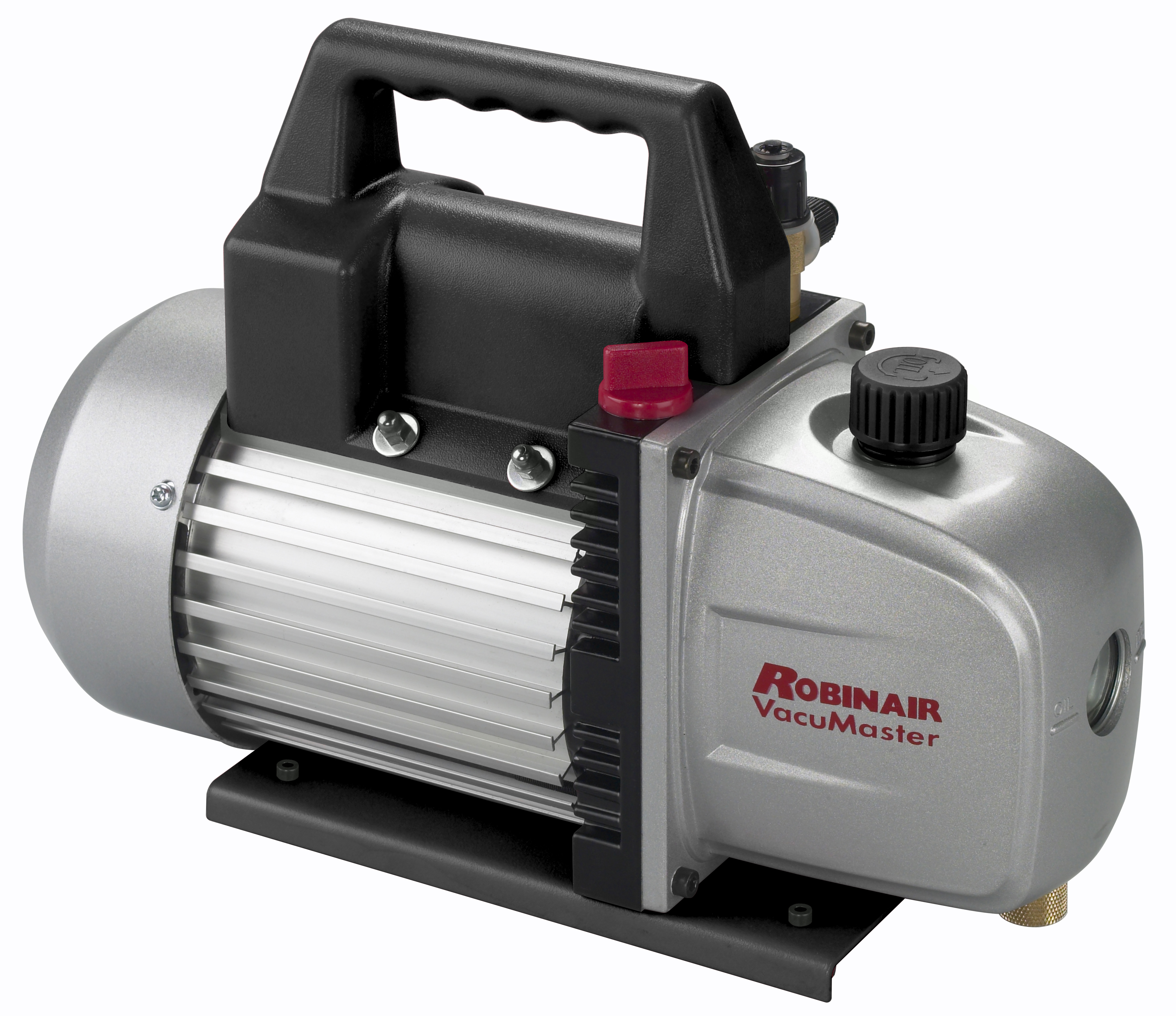

VacuMaster® Single Stage Pump

15510

VacuMaster® Single Stage Pump

Robinair VacuMaster™ single-stage vacuum pump features below. See Specifications tab for voltage, micron rating, recommended uses, dimensions and more.

  • Angled oil drain valve: faster, more complete draining
  • Top oil fill port: Better access when refilling oil
  • Cast aluminum body: Lightweight and durable die-cast aluminum reduces weight and creates a strong, durable pump
  • Quality: Performance-tested to meet Robinair’s quality, durability and longevity standards
  • Intake screen: Prevents foreign matter from entering pumping chamber. External exhaust filter separates oil vapor from exhaust flow
  • “No Hassle” warranty: Exclusive over-the-counter replacement warranty. Robinair pumps can be returned to a distributor for an immediate exchange. U.S. and Canada only. In other locations, see your Robinair distributor
  • Multi-use: Designed for use on A/C-R systems using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkyl benzene oil, and PAG oil as lubricants
  • Not for use with ammonia or lithium bromide systems
  • Not for use with A4L or other flammable refrigerants
Compare Models
Free air displacement
5 CFM
Factory micron rating
75 microns
Stages
1
Intake fitting
1/4" flare and 1/2" Acme
Oil capacity
10 oz. (300 ml)
Motor size
1/3 hp
Voltage
110V 60Hz
Approvals
CSA, as of June 2020
Weight
21 lbs. (9.7 kg)
Dimensions
10" H x 4.875" W x 13.25" L (255 mm x 123 mm x 336 mm)
Uses
Up to 10 tons (35 kW) domestic refrigeration, passenger cars
Cord length
6' (1.82 m)
UPC
637335039674
Warranty
One Year

Compare to similar items


15510


15115

15150 VacuMaster 1.5 CFM pump photo

15150

Free air displacement 5 CFM 1.5 CFM 1.5 CFM
Factory micron rating 75 microns 115 microns 50 microns
Stages 1 1 2
Intake fitting 1/4” flare and 1/2” Acme 1/4” flare and 1/2” Acme 1/4” MFL and 3/8” Acme 3/8” FFL x 1/2” Acme adapter
Oil capacity 10 oz. (300 ml) 10 oz. (300 ml) 7.4 oz. (219 ml)
Motor size 1/3 hp 1/4 hp 1/3 hp
Voltage 110V 60Hz 110V 60Hz 115V 60 Hz
Approvals CSA CSA CSA
Uses Up to 50 tons (176kW) Rooftop A/C systems, tractor/trailers, buses Up to 10 tons (35kW) domestic refrigeration, passenger cars Up to 10 tons (35kW) domestic refrigeration, passenger cars
Cord length 6’ (1.8 m) 6’ (1.8 m) 6’ (1.8 m)
