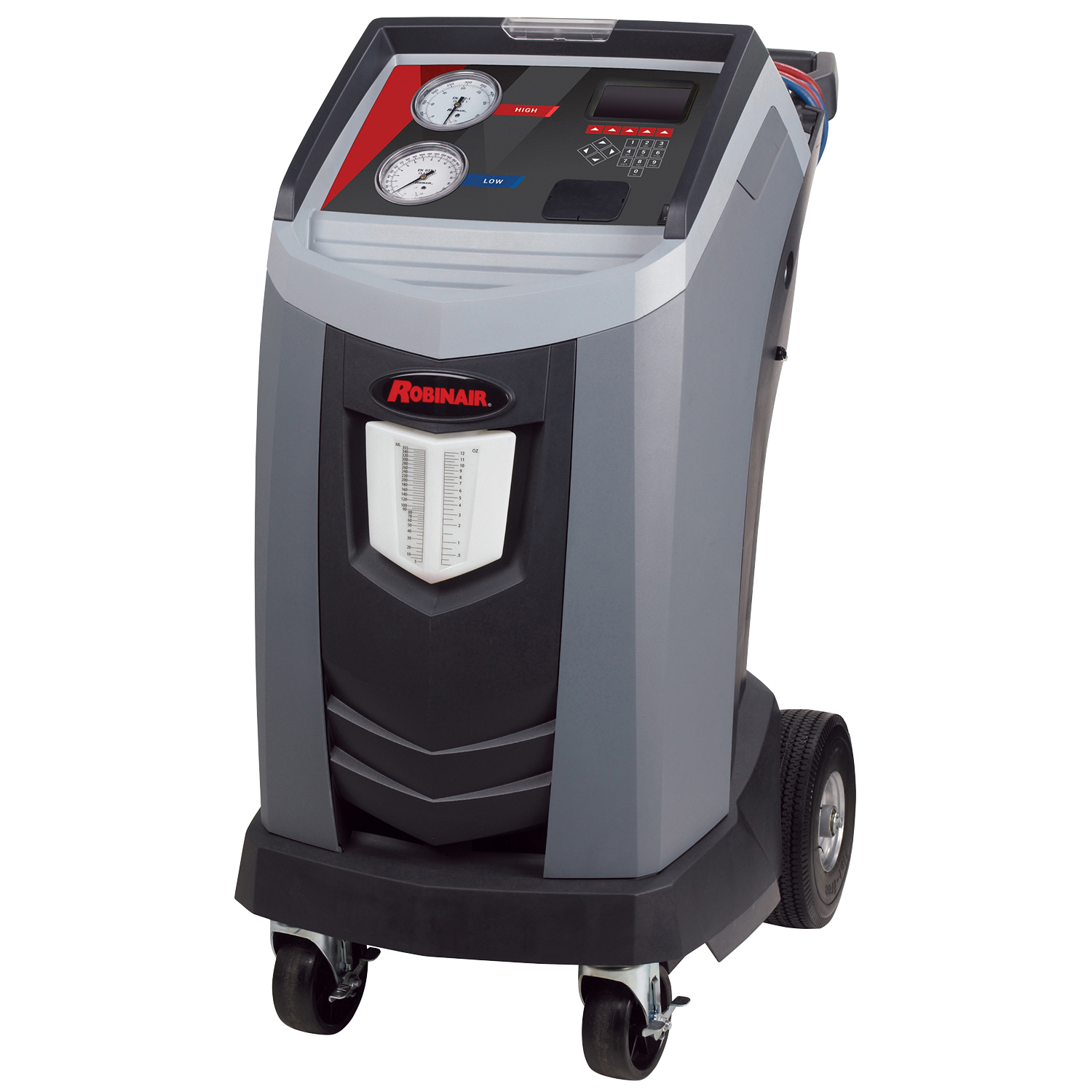

34788NI-230 Premier R-134A Refrigerant Recover, Recycling, and Recharging Machine
34788NI-230

Premier R-134A Refrigerant Recovery, Recycling, and Recharging Machine, 230V

Robinair introduces its next innovation, the 34788NI-230, featuring an industry leading 98.5% recovery efficiency for standard and hybrid vehicles and fully automatic function.

Robinair 34788NI-230 machine recovers, recycles, evacuates, leak-tests and recharges R-134a with improved 98.5% efficiency – unmatched by any competitor. The new design features a larger graphical display, automatic features including leak testing, automatic refrigerant refill and oil drain/inject – putting A/C lubricant back into the system. 34788 also boasts the ability to add a printer, USB data sharing, refrigerant identifier and wireless module for Wi-Fi or Bluetooth® communication. An optional refrigerant charge and oil capacities database is available for North American market vehicles.

Keep your machine operating with 34724 replacement filters or 13172 maintenance kits.

The Robinair 34788NI-230 is not intended for use, nor available for sale in the U.S. market. The product is available for international 230V countries only.

Compare Models
  • 34788NI ACS machine
  • Operators manual
  • Authorized Service Center sheet
  • MACS 609 Certification sheet
  • MVAC Equipment Certification sheet
  • Calibration weight
Operating Range
32° - 120°F (0°-50°C)
Recovery Performance
>95% at 70 to 75° F (21 to 24°C) <30 minutes
Voltage
230V, 50/60 Hz
Charge Performance
+/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)
Display
5 cm x 9 cm graphical display
Filter-Drier Capacity
150 lb (68kg), spin-on type
Hoses
9 ft (2.75 m)
Weight
Approximately 230 lbs. (103 kg)
Compressor
3/8 hp, pressure protected, oiled, hermetically sealed
Dimensions(HxWxD)
48.5 in x 24 x 36 (123 cm x 61 cm x 91 cm)
Vacuum Pump
1.5 cfm Dual Stage, 29.9 InHg
Languages
English, French, Spanish, Portuguese
Internal cylinder
30 lb DOT (13.6 kg); 22 lb (10 kg) capacity
Certifications
SAE J2788
Warranty
One Year

Compare to similar items

34788NI-230 Premier R-134A Refrigerant Recover, Recycling, and Recharging Machine

34788NI-230

AC1234-6 1234YF Recover, Recycle, Recharge Machine

AC1234-6

34788NI new enclosure image

34788NI

Refrigerant R134a R-1234yf R134a
A/C Service Automatic Automatic Automatic
Manifold Values Automatic - Not required Automatic - Not required Automatic - Not required
Recovery Efficiency 98.50% 98.50% 98.50%
Charge Accuracy +/- .5 oz +/- .5 oz +/- .5 oz
Automatic Internal Tank Refill Yes Yes Yes
Auto Oil Drain Yes Yes Yes
Auto Oil Injection Yes, 1 bottle No Yes, 1 bottle
UV Dye Injection No No No
Air Purge Automatic Automatic Automatic
A/C Component Flushing Yes Yes Yes
Vacuum Leak Test Yes Yes Yes
Nitrogen Leak Test No No No
Vehicle Data Optional, 34412-E Optional, 34414-A Optional, 34412-E
Service Record Storage Yes Yes Yes
Refrigerant Management Yes Yes Yes
Display 5” x 9” Color, Graphical Display 5.7” LCD Display 5” x 9” Color, Graphical Display
Vacuum Pump 1.5 cfm dual stage (35 microns) 1.5 cfm dual stage (35 microns) 1.5 cfm dual stage (35 microns)
Internal Tank 30 lb 30 lb 30 lb
Hose Length 9 ft 9 ft 9 ft
Printer Optional, 30038 Yes Optional, 30038
Notification Light Yes Yes Yes
WiFi Capable No No Yes, requires 80211TMP or 80211VCI master kit
Audio No Yes No
USB port Yes Yes Yes
Cord Wrap Yes Yes Yes
Filter-Drier Capacity 150 lbs 330 lbs 150 lbs
Warranty 1 Year 1 Year 1 Year
Service Over 255 trained and certified service facilities Over 255 trained and certified service facilities Over 255 trained and certified service facilities
Meets SAE J-2788 Requirements Yes Yes
RJ45 Ethernet Connector No Yes WiFi capable with 80211TMP or 80211VCI master kit
Integrated Refrigerant Identifier No Yes No
Contaminated Refrigerant Removal Port No Yes No
Meets SAE J-2843 Requirements Yes
Meets SAE J-2927 Yes
Hybrid/EV capable No Yes No
